High precision manual printing table

Workbench size：300*400mm
Maximum printing size：250*400mm
Maximum mesh frame size：370*470mm
Repetition accuracy：±0.01mm

BASIC INFO

High precision manual printing table

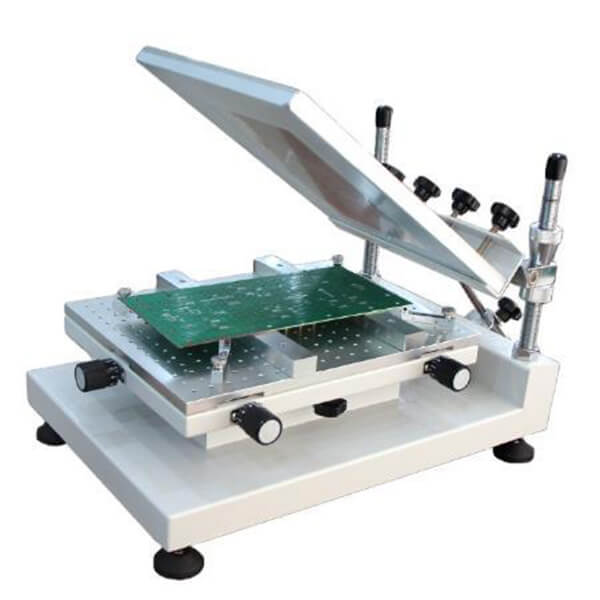

High precision manual printing table is mainly designed for single and double-sided circuit board solder paste or red glue printing requirements, the work platform selection of high-quality aluminum honeycomb positioning hole processing, the base using thickened steel plate welding molding, strong and stable, durable. Its features are as follows：
（1）The line plate is positioned by positioning pins, fixed rods and fixed plate blocks, which is convenient for positioning and ensures repeatable operation accuracy.

（2）The calibration method is easy and fast by moving the stencil and combining with the X and Y axis fine adjustment correction of the printing platform.

（3）The stencil holder adopts a spiral screw, which can adjust the height up and down, so it is convenient to control the PCB thickness and the amount of printing solder paste.

（4）Printing stencil is fixed by 4 knobs with pressure plate, fast and firm.

Workbench size	300*400mm
Maximum printing size	250*400mm
Maximum mesh frame size	370*470mm
Printing speed	Manual control
Printing speed	Other specifications can be customized by contacting our company
Thickness of printed material	0-80mm
Table vertical and horizontal adjustment	10mm
Printing platform height	220mm
Repetition accuracy	±0.01mm
Positioning method	Profile or reference hole
*Dimension (LWH)*	540370350mm
Weight	36KG
