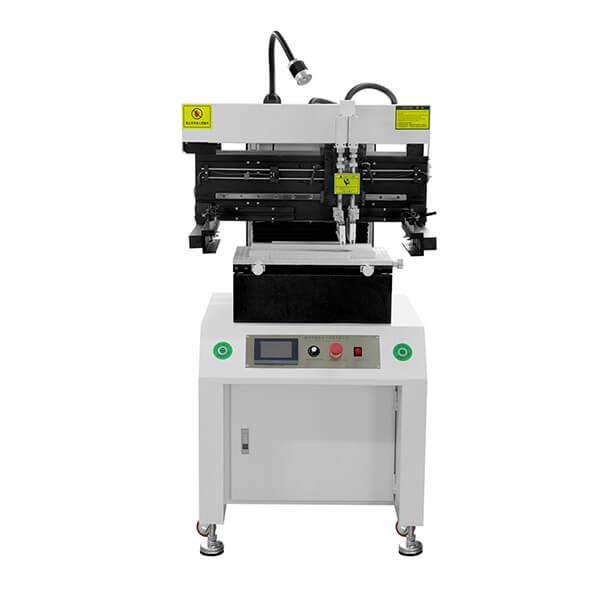

China Semi-automatic printing machine
1.Microcomputer control, touch screen display, menu operation interface;
2.Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3.The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4.Equipped with frequency converter speed regulation system, scraper running speed is stable;
5.Operation with two-hand button switch, safe and reliable;
6.The pause time of the entire stencil can be independently set in the touch screen menu;
7.Positioning and fixing methods of PCB board include positioning of reference hole, positioning of reference edge, simultaneous positioning of reference edge of reference hole and template, etc.;
8.The touch screen is equipped with time display function, automatic counting function of printing times and screen protection function;
9.Equipped with scraper speed adjustable function and emergency stop safety function;
10.Printing mode: single, double and secondary startup (menu setting is optional);
Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional);
Direction of movement
Move left and right
Workbench
500*320mm
Power Supply
Single phase 220V
Dimension
860*780*1480mm
Air Supply
0.5-0.8mpa
Starting Power
0.2KW
Weight
About 150KG
Steel mesh clamping device
Manual locking(thin cylinder clamping steel mesh is optional)
Printing Range
400*320mm
Moving Motor
Three-phase motor 60W
Moving Speed
0-2200mm/min
Rail
Taiwan silver linear guide
PLC Control
Siemens
Touch Screen
4.3# display control screen
Main Cylinder
SC63*150
Cutter Head Cylinder
CDU25-50
Frequency Converter
ENC
Floodlight
LED light
