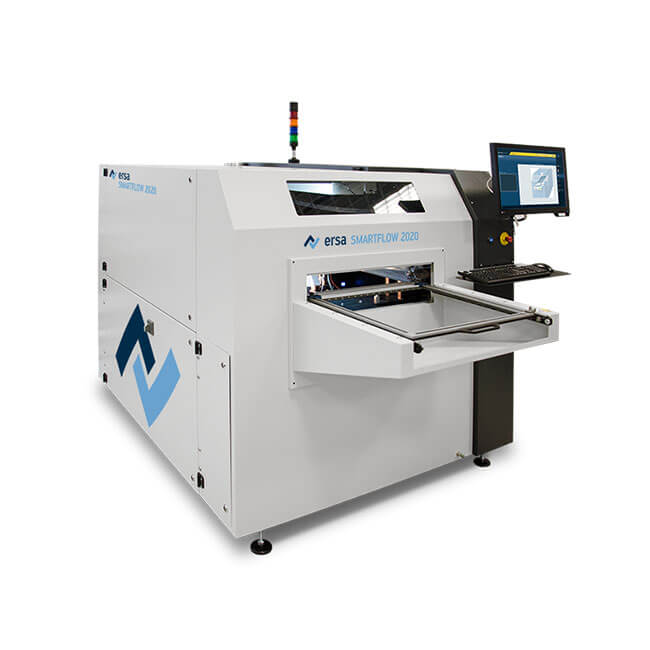

ERSA SMARTFLOW 2020 Selective Soldering Machine
The perfect start-up solution
Tech-Highlights SMARTFLOW 2020
Plug and Solder" - the compact selective entry model
Intuitive operating concept
Technical Data
SMARTFLOW 2020
Dimensions
|
Length: 1.750 mm Width: approx. 1.450 mm |
Height: approx. 1.520 mm |
Conveyor support
|
Universal mask holder PCB width: 15-508 mm PCB length: 15-508 mm |
Maximum PCB build-up at the top up to 80 mm Maximum PCB build-up at the bottom up to 60 mm Maximum PCB weight: 3 kg |
Flux module / Preheat module / Solder module
|
Fluxer: Drop-Jet in different sizes Preheater: IR radiant heating bottom or combination of IR bottom and IR top |

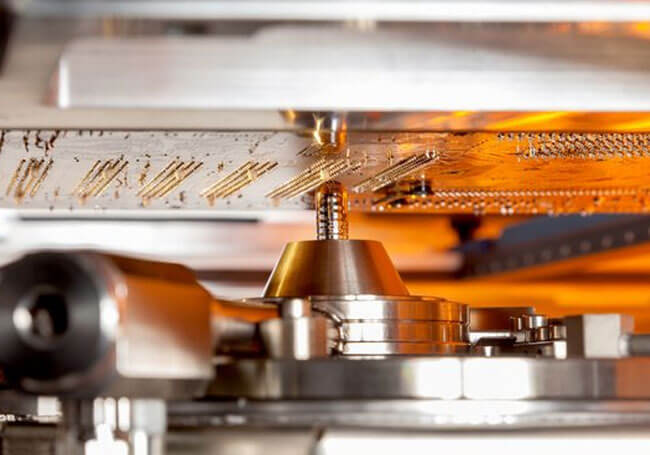

Soldering module: Electromagnetic solder pot Mini-wave/mini-dip (optional) |
