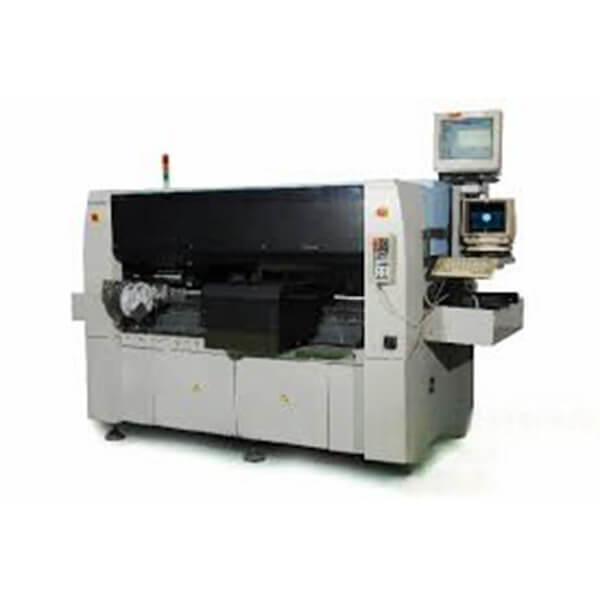

Yamaha YV112 Pick and place machine

BASIC INFO

Yamaha YV112 Pick and place machine

PCB size L460 × W440mm (Max) to L50 × W50mm (Min)

PCB thickness 0.4mm to 3.0mm/0.65kg Max

PCB flow direction Right to left (option: left to right)

Delivery method: Front side only

Absolute accuracy():±0.05mm/CHIP,±0.05mm/QFP

Repeatability():±0.03mm/CHIP,±0.03mm/QFP

The optimal condition for mounting speed is 0.18sec/CHIP

IPC9850 situation 1608CHIP: 1620CPH (0.22sec/CHIP)

16pinSOP:10,800CPH(0.33sec/SOP)

The number of component varieties is 40 types converted into 8mm tape (20 lanes x 2, max.)

90 types converted in 8mm tape (20 lanes×2+50 lanes×1, max.)

Component supply form Tape reel, bulk,stick,Tray(The automatic feeding is not available.)

CHIP components that can be mounted, SOP/SOJ,QFP,connector,PLCC

●0603CHIP(Metric base)to □31mm components,

●Height of components which can be mounted:6.5mm

Power specification 3-phase AC200/208/220/240/380/400/416V ± 10% 50/60Hz

The average power consumption is 4.4kVA/0.65KW

Supply gas source/consumption flow rate 0.55Mpa or more, 160/ min.(ANR)(Max),in clean,dry state

Dimensions L1650 × W1408 × H1850mm (Top of 3-color signal tower)

Host weight Approx. 1580kg

SMT Pick and place machine Brand

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
