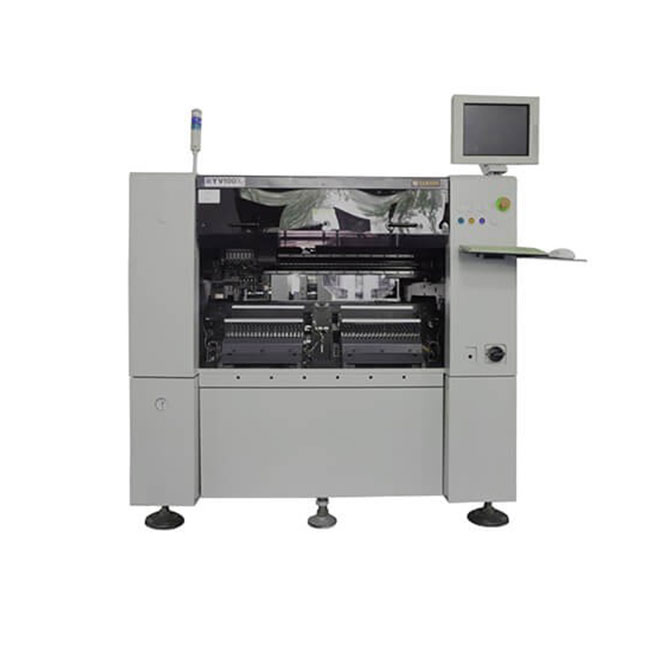

Yamaha YV100XTG Pick and place machine

BASIC INFO

Yamaha YV100XTG Pick and place machine

M type: L330X250(Max)/L50xW50mm(Min)

L type: L380X330(Max)/L50xW50mm(Min）

Assembly accuracy absolute accuracy (U+3 Sigma 0 ± 0.05mm/CHIP ± 0.05/QFP)

Mounting speed (optimal condition) 0.135 seconds/CHIP 1608 CHIP: 22000CPH (converted to 0.16 seconds/CHIP) (IPC9850 condition)

Install possible component 0603~□ 31MM Extra long plugin (L100MMxW32MM). CSP. BGA. QFP

FNC mounting head: limited to a height of less than 4MM above the front substrate before feeding

Can mount components with a height of 605mm

Standard mounting head: The height limit above the substrate before feeding is below 6.5mm

Can mount components with a height of 6.5mm

Power specifications: three-phase AC200/208/230/240/380/400/416V ± 10%. 50/60HZ

Power KVA

Gas source specification above 0.55MPA. 305 ∪ min (ANR) (Max). Clean and dry state

Dimensions/Host Weight L1650xW1480xH1895mm/1750kg

SMT Pick and place machine Brand

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
