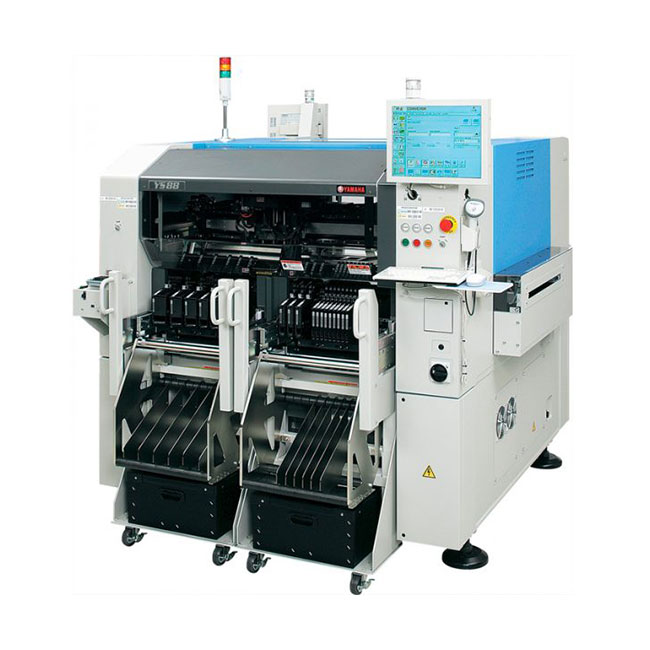

Yamaha YS88 pick and place machine
The Yamaha YS88 is equipped with 3 fully independent servo-controlled Flying Nozzle Change (FNC) heads, each carrying up to 6 nozzles. It delivers high-end performance with chips, ICs, and odd form components. Not only does it offer placement rates of up to 8.9k components per hour with a placement accuracy of 30 microns for ICs and QFPs, but it also handles an extremely wide component range as tall as 25.5mm. Precision force control allows optimal handling of press-fit through-hole connectors with forces up to 30N.
Features:
1. Handles a super-wide range of components from 0402 chips to D55mm components and with long connectors.
2. Handles components with heights up to 25.5mm.
3. Simplified Pressing force control from 10 to 30N.
4. +/-30 ~m QFP mounting absolute accuracy and +/-20 ~m QFP Repeatability in full-time operation.
5. 8,400CPH (0.43 sec/CHIP Equivalent: optimum condition) mounting capacity.
6. Applicable to large size PCB (L510mm x W460mm).
7. A built-in tape cutter is available as an option.
8. Conformity with both Machinery directive and EMC directive (CE marking).
| Model | YS88 (Model: KJH-000) |
| Applicable PCB | L510xW440mm to L50xW50mm (Note 1)(Note 2) |
| Through-put (Optimum) | 8,400CPH(0.43sec/CHIP Equivalent) |
| Mounting accuracy (Yamaha's standard components) | Absolute accuracy (μ+3σ):+/-0.05mm /CHIP, +/-0.03mm /QFP |
| Repeatability(3σ) +/-0.03mm /CHIP, +/-0.02mm /QFP | |
| Applicable components | 0402(Metric base)to □55mm components, SOP/SOJ, QFP connector, PLCC,CSP/BGA, Long connector(W45xL100 mm or less)(Note 3)(Note 4) |
| Odd-shaped components(such as special connectors)which require pressing force control mounting(10 to 30N) | |
| Height of components which can be mounted: 25.5mm or less(Note 5) | |
| Allowable height on PCB surface before transport: 6.5mm or less | |
| Number of component types | 90types(Max,8mm tape reel conversion)(Note 1) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry states |
| External dimension(Note 6) | L1,665xW1,562(End of cover)xH1,445mm(cover top)L1,665xW1,615(End of guide for feeder carriage)xH1,445mm(cover top) |
| Weight | Approx. 1,650kg(Main unit only) |
