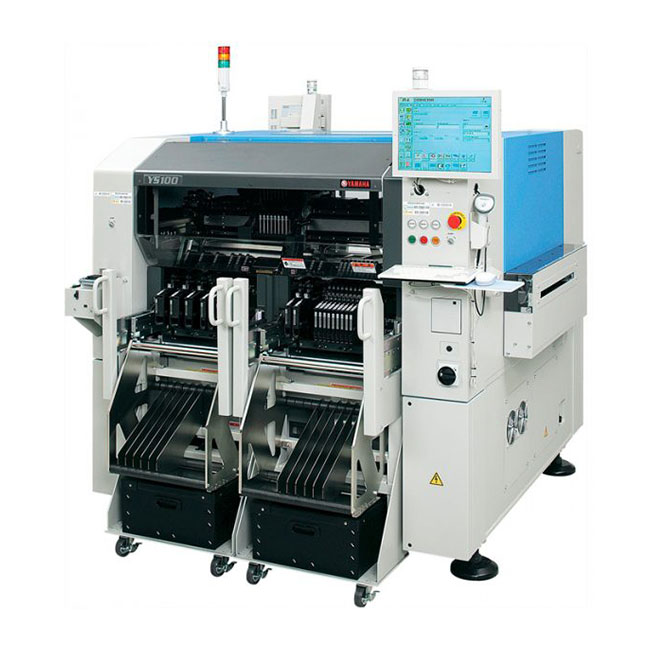

Yamaha YS100 pick and place machine
Yamaha YS100 Pick and Place machine is designed with a high precision single placement beam that carries eight independent Z-servo controlled heads. The YS100 SMT Mounter provides a perfect balance between the chip and IC shooting. Yamaha YS100 is available in two (2) versions, one with a Flying Nozzle Change (FNC) head for when many nozzle changes are needed and high output is important, and the other with a Super Fine (SF) head for use with a wider component range including QFPs, connectors and tall components.
With placement rates of up to 19.6k components per hour, the YS100 is fast. Placement accuracy is 30 microns for ICs. It handles a wide range of components from 0.4x0.2 mm (01005) to large connectors (100x45 mm), fine-pitch, and components up to 15 mm tall. The YS100 holds up to 126 tape feeding positions.
Features:
The standard YS100 comes with software and hardware features to improve product quality, increase production efficiency, shorten NPI and changeover times, and reduces maintenance, including:
Intelligent electrical feeders
Z-Servo controlled placement heads for accurate stress-free component mounting
Automatic board width and thickness adjustment for fast changeover
Automatic nozzle cleaning station
Automatic temperature feedback to compensate for temperature variations
Fiducial recovery function that eliminates the need to remove and clean the PCB
Feeder indicators that facilitate easy setup and reduce feeder setup
Double board support system for reducing board transfer time
Tape cutters
High-speed mounting capacity handling
1. 25,000CPH(0.14sec/CHIP Equivalent : optimum condition)
2. +/-50μm(CHIP),
3. +/-30μm(QFP)mounting
4. absolute accuracy in full time operation
5. Handles a wide range of components from 0402 chips to W45xL100mm or fewer components and with long connectors
6. Capable of handling 15mm height components
7. Applicable to large size PCB(L510mm x W460mm)
8. Built-in tape cutter available as an option
9. Conformity with both Machinery directive and EMC directive
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
