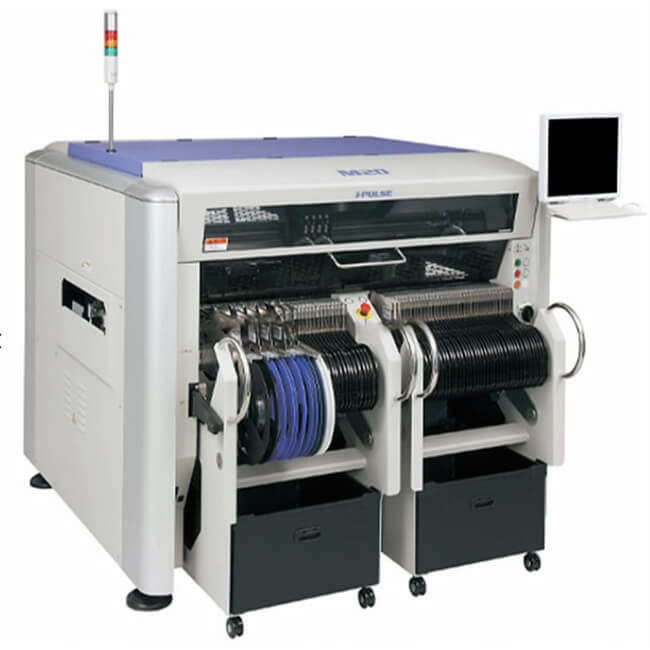

Yamaha I-Pulse M20 Pick and place machine

Placement Speed : 23,000CPH
Applicable PCB : 740*510mm
Applicable Part :0402-120*90mm
Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm

BASIC INFO

Yamaha I-Pulse M20 Pick and place machine

In keeping with the I-Pulse philosophy of designing flexible, high specification SMT manufacturing centres, the new M20 series is targeting both current and future manufacturing requirements.

The M20 is addressing the requirements of high feeder capacity, production flexibility and the increasing demands of new component technology and market demands.

The highly flexible M20 is available with a range of head configurations to suit capacity and technology demands. The ability to configure the M20 with head variants to handle standard SMT, odd form, plus the removable hybrid dispense option makes the M20 a uniquely flexible mounter.

1.Ultra Large board capability for LED lighting applications up to 1,800 mm.

2.Board warp detection.

3.Component range – 01005 up to 120L x 90W x 30 mm high.

4.High Feeder capacity – up to 180 x 8mm feeders.

5.Fast change Hybrid dispense capability.

6.Multiple head options – Standard, High Precision and High Performance.

7.Fully controllable placement force.

I-Pulse M20 is a truly future proof and flexible system designed for the demands of today and future of SMT manufacturing.

Model	Yamaha I-Pulse M20
Board size(with buffer unused)	Min. L50 x W30mm to Max. L1,480 x W510mm*1
Board size(with input and output buffers used)	Min. L50 x W30mm to Max. L540 x W510mm
Board thickness	0.4 - 4.8mm
Board flow direction	Left to right (Std)
Board transfer speed	Max 900mm/sec
Placement speed (4 heads + 1 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (4 heads + 4 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (6 heads + 2 theta) Opt. Cond.	0.12sec/CHIP (30,000CPH)*2
Placement speed (4 heads + 1 theta) IPC9850	19,000CPH
Placement speed (4 heads + 4 theta) IPC9850	19,000CPH
Placement speed (6 heads + 2 theta) IPC9850	23,000CPH*2
Placement accuracy A (?+3?)	CHIP +/-0.040mm
Placement accuracy B (?+3?)	IC +/-0.025mm
Placement angle	+/-180 degrees
Z axis control	AC servo motor
Theta axis control	AC servo motor
Component height	Max 30mm*3聽(Pre-placed components: max 25mm)
Applicable components	0402 to 120x90mm, BGA, CSP, connector, etc.
Component package	8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check	Vacuum check and vision check
Screen language	English, Chinese, Korean, Japanese
Board positioning	Board grip unit, front reference, auto conveyor width adjustment
Component types	Max 144 types (8mm tape), 36 lanes x 4
Transfer height	900 +/- 20mm
Machine dimensions, weight	L1750xD1750xH1420mm, Approx. 1450kg
Power	3-phase 200/208/220/240/380/400/416/440V +/-10%
Power	(Transformer included), 50/60Hz
Max consumption, capacity	1.1kW, 5.9kVA
Air pressure, consumption	0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.
