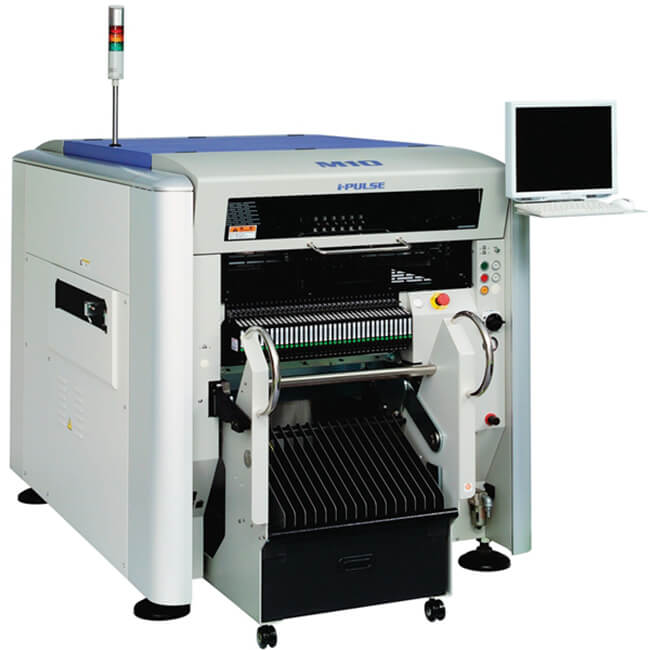

Yamaha I-Pulse M10 Pick and place machine

Placement Speed : 30,000CPH
Applicable PCB : 740*510mm
Applicable Part :0402-120*90mm
Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm

BASIC INFO

Yamaha I-Pulse M10 Pick and place machine

The M10 has all the features of its superior but with half the feeder capacity , the M20
represents the next generation in SMT Automation. Applying the same range of interchangeable feeder banks and tray handlers, the M10 makes an excellent complement to existing iPulse lines and a highly flexible mounter for the placement of fine pitch and tray feed parts.
The greater PCB handling permits production capability that has never before seen in a
compact footprint mounter. The increased component height and overall component dimension capability expands the range of placeable components, making the M10 one of the most flexible and accomplished machines ever presented from iPulse.
Available in 4 and 6 head configurations, the M10 can be custom tailored to your needs. A maximum of 72 can be fixed on the feeder banks or on changeable banks of 36 feeders each making a fast and easy change over. The 36 feeder changeable rear bank can be swapped with a 40 tray changer.

The M10 comes with new standard features such as ‘Force Control Function,’ allowing adjustment and measurement of the downward force applied to components being placed from 5N to 60N. Placement verification is another standard feature using a downward looking camera, eliminating the need for a separate after placement inspection machine

Model	Yamaha I-pulse M10
Board size(with buffer unused)	Min. L50 x W30mm to Max. L980 x W510mm *1
Board size(with input or output buffer used)	Min. L50 x W30mm to Max. L420 x W510mm
Board size(with input and output buffers used)	Min. L50 x W30mm to Max. L330 x W510mm
Board thickness	0.4 - 4.8mm
Board flow direction	Left to right (Standard)
Board transfer speed	Max 900mm/sec
Placement speed (4 heads + 1 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (4 heads + 4 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (6 heads + 2 theta) Opt. Cond.	0.12sec/CHIP (30,000CPH)*2
Placement speed (4 heads + 1 theta) IPC9850	19,000CPH
Placement speed (4 heads + 4 theta) IPC9850	19,000CPH
Placement speed (6 heads + 2 theta) IPC9850	23,000CPH*2
Placement accuracy A	CHIP +/-0.040mm
Placement accuracy B	IC +/-0.025mm
Placement angle	+/-180 degrees
Z axis control	AC servo motor
Theta axis control	AC servo motor
Component height	Max 30mm*3 (Pre-placed components: max 25mm)
Applicable components	0402 to 120x90mm, BGA, CSP, connector, etc.
Component package	8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check	Vacuum check and vision check
Screen language	English, Chinese, Korean, Japanese
Board positioning	Board grip unit, front reference, auto conveyor width adjustment
Component types	Max 72 types (8mm tape), 36 lanes x 2
Transfer height	900 +/- 20mm
Machine dimensions, weight	L1250xD1750xH1420mm, Approx. 1,150kg
Power	3-phase 200/208/220/240/380/400/416/440V +/-10%
Power	(Transformer included), 50/60Hz
Max consumption, capacity	1.1kW, 5.5kVA
Air pressure, consumption	0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.
