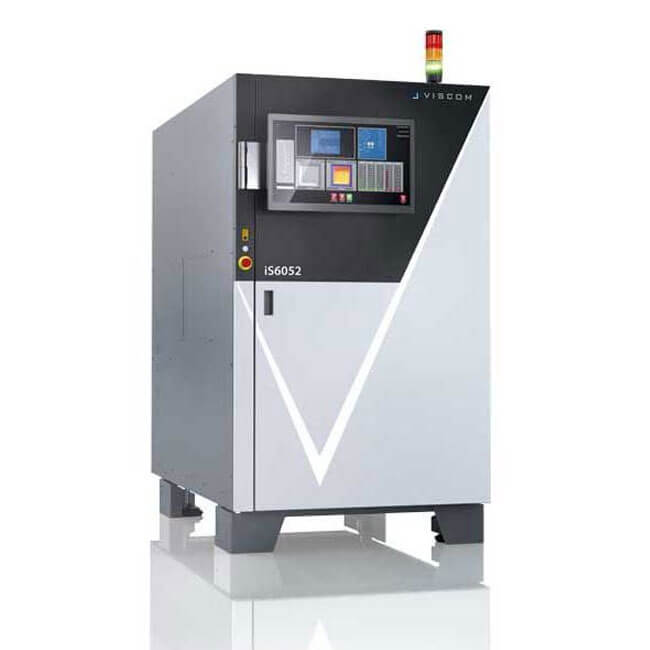

VISCOM iS6052 3D SPI Machine
Introducing the iS6052 SPI, Viscom's solution for inspecting solder paste applications in SMD production with remarkable efficiency and accuracy. Emerging from over forty years of expertise, this 3D inline system meticulously evaluates critical features like volume, height, and shape, alongside surface area, displacement, and smearing. Equipped with innovative sensor technology including an orthogonal camera and four lateral views, it ensures unparalleled inspection quality. Realistic color imaging facilitates swift and precise verification, while the Fast Flow handling system guarantees exceptional throughput by synchronizing assembly input and output. With minimal handling times and reduced mechanical impact, this system optimizes efficiency without compromising performance. Intelligent networking capabilities further bolster process stability and streamline operations within the SMT line.
Advantages at a glance
Proven 3D camera technology
Designed specifically for most applications in production
Meets demanding cycle time requirements
Closed loop functions with solder paste printer and pick-and-place machine
Effective process control and optimization in real time
HIGHLIGHTS
Robust system design
Ideal system configuration with respect to costs/benefits
High inspection speed
One orthogonal camera and four angled-view cameras provide basically shadow-free 3D inspections
Verified zero defect slippage thanks to integrated verification
Flexible integration into existing productions
Improved ergonomic design
CONNECTIVITY
Global libraries, global calibration: transferability to all systems
Intelligent software add-ons such as integrated verification or Viscom Quality Uplink for effective networking
Traceability, offline programming, statistical process control
Communication with MES systems
Independent real-time image processing with Viscom analysis tools
High-performance OCR software
optional connection to the digital multi-purpose platform vConnect
INSPECTION
Inspects solder paste deposits (pad sizes of 01005 components) and dispenser paste for surface, height and shape
Defects/defect features: too much/too little solder, missing solder, print displacement (X/Y offset), paste smearing
Optional: coplanarity, open area analysis, OCR, DMC
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
