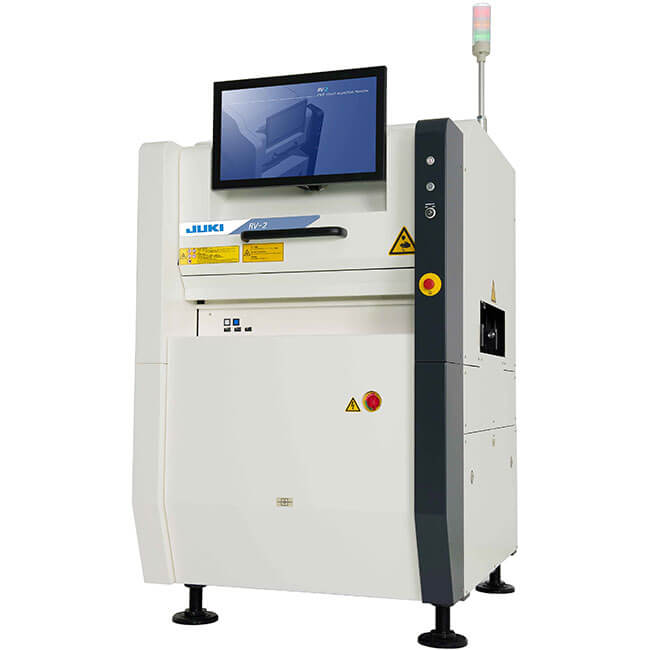

JUKI RV-2 3D (AOI/SPI ) Machine
Space-saving and compact single-lane inspection machine
Features
Clear Vision Capturing System
Worlds top-class high performance
Inspection speed = 0.2 sec / frame
Easy programming
CCC ( Central Confirmation Control)*
SPC ( Statistical Process Control) *
Supports 3D inspection *
Specification
|
Model name |
RV-2 |
||
|
PWB size |
50mm×50mm – 410mm×360mm |
||
|
630mm×360mm(longer sized PWB)* |
|||
|
Components |
0402* / 0603(metric), |
||
|
Cylindrical chip, tantalum capacitor, transistor, SOP / QFP,etc. |
|||
|
FOV(optimum) |
2D |
0.2s / frame |
|
|
i-3D SPI |
2D+3D |
0.50s / frame(4frame) |
|
|
inspection |
|||
|
e-3D AOI |
2D+3D |
0.55s / frame(4frame) |
|
|
inspection |
|||
|
Inspection resolution |
15μm (Standard resloution),10μm (High resolution)* |
||
|
Item of inspection |
Missing component,Position displacement, Polarity, Front/rear reversal, Unsoldered,Bridge, Quantity of solder, Lack of insertion component, Character recognition* |
||
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
