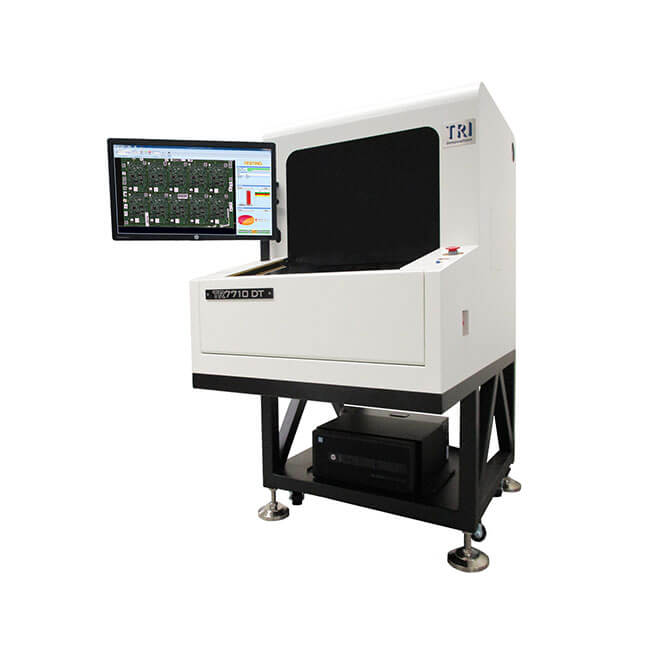

TRI TR7710 DT AOI SMT Inspection Machine
Features
• Economical and flexible desktop AOI solution
• 6.5 Mpix high speed color camera
• NPI-optimized easy programming interface wizard
• Stop-and-Go inspection with large depth of field (DOF)
• 10 µm or 12.5 µm optical resolution
Specification
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 6.5 Mpix |
| Angle Camera | N/A |
| Imaging Resolution | 10 µm, 12.5 µm (factory setting) |
| Lighting | Multi-phase RGB+W LED |
| 3D Technology | N/A |
| Max. 3D Range | N/A |
| Inspection Performance | |
| Imaging Speed | 6.5 Mpix@ 10 µm: 22 cm²/sec |
| 6.5 Mpix@ 12.5 µm: 35 cm²/sec | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC-servo controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7710 DT: 330 x 250 mm |
| TR7710L DT: 510 x 460 mm | |
| PCB Thickness | 3 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 25 mm |
| Bottom Clearance | 100 mm |
| Edge Clearance | 3 mm |
| Conveyor | Manual |
| Inspection Functions | |
| Component | Missing |
| Tombstoning | |
| Billboarding | |
| Polarity | |
| Rotation | |
| Shift | |
| Wrong Marking (OCV) | |
| Defective | |
| Upside Down | |
| Extra Component | |
| Foreign Material | |
| Solder | Excess Solder |
| Insufficient Solder | |
| Bridging | |
| Through-hole Pins | |
| Lifted Lead | |
| Golden Finger | |
| Scratch/Contamination | |
| Dimensions | |
| WxDxH | TR7710 DT: 800 x 1100 x 1480 mm |
| TR7710L DT: 970 x 1295 x 1465 mm | |
| Weight | TR7710 DT: 340 kg |
| TR7710L DT: 380 kg | |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
