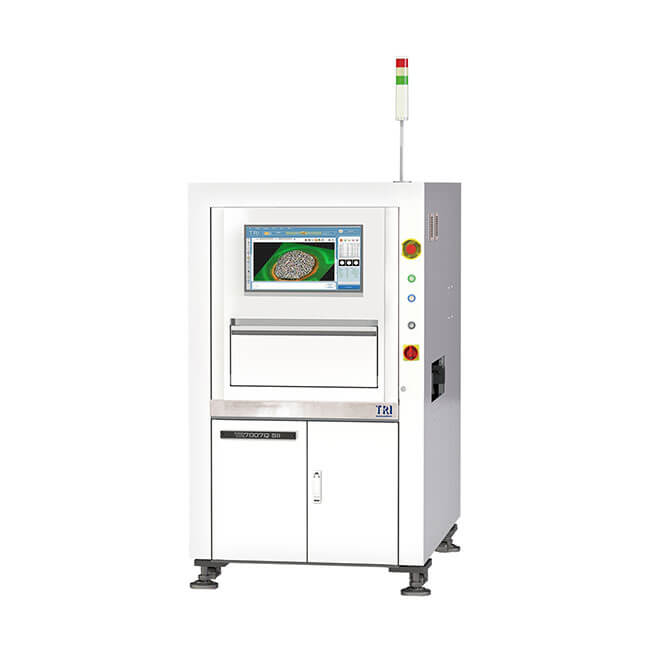

TRI TR7007Q SII SPI Machine
The TR7007Q SII is a cutting-edge 3D SPI system designed to enhance your production processes. With its high-speed platform, the 3D SPI delivers up to 50% faster inspection compared to previous models, ensuring optimal efficiency. Experience improved accuracy and stability, allowing for precise solder measurements and minimizing false calls. Equipped with a wide spectrum light system and coaxial lighting*, the TR7007Q SII enhances contrast and detection rates, enabling you to capture intricate details with exceptional clarity. The 3D SPI is an Industry 4.0 Ready Solution supporting the upcoming and innovative protocols such as IPC Connected Factory Exchange (CFX) and IPC Hermes 9852 standard.
Features
• Wide Spectrum Light for Enhanced Contrast and Detection Rate
• Improved Accuracy and Stability for Precise Solder Measurements
• New motion controller, EtherCAT, for real-time measurements
• 100% Shadow-free Quad/Dual Digital Fringe projectors
• SmartWarp Compensation Eliminates Local PCB Deformation
• Smart Factory solution with Real-time SPC Trends
• Closed Loop Ready: Feedback and Feed-forward Capabilities
Specification
| Imaging Method | Dynamic Imaging |
| Camera | 4 Mpix |
| Imaging Resolution | 10 µm or 15 µm (factory setting) |
| Lighting | RGB LED |
| 3D Technology | 2-way Fringe Pattern |
| Field of View | 4 Mpix@ 10 µm: 20 x 20 mm |
| 4 Mpix@ 15 µm: 30 x 30 mm | |
| Inspection Performance | |
| Imaging Speed | 4 Mpix@ 10 µm: 80 cm²/sec |
| 4 Mpix@ 15 µm: 180 cm²/sec | |
| Height Resolution | 0.4 µm |
| Max. Solder Height | @ 10 µm: 600 µm |
| @ 15 µm: 550 µm | |
| Motion Table & Control | |
| X-Axis Control | Linear Motor and linear scale with DSP-based controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 0.5 µm |
| Z-Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7007 SII: 510 x 460 mm |
| TR7007LL SII: 850 x 610 mm | |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | TR7007 SII: 3 kg |
| TR7007LL SII: 5 kg | |
| Top Clearance | 40 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm |
| Conveyor Height | 880 – 920 mm |
| * SMEMA Compatible | |
| Inspection Functions | |
| Defects | Insufficient Paste |
| Excessive Paste | |
| Shape Deformity | |
| Missing Paste & Bridging | |
| Measurement | Height |
| Area | |
| Volume | |
| Offset | |
| Dimensions | |
| WxDxH | TR7007 SII: 1220 x 1663 x 1620 |
| TR7007LL SII: 1600 x 1813 x 1637 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7007 SII: 920 kg |
| TR7007LL SII: 1117 kg |
