TRI TR7710 AOI Machine

Max. 3D Range：N/A
Imaging Speed：6.5 Mpix@ 10 µm: 27 cm²/sec
Max PCB Size:10 µm, 15 µm: 510 x 460 mm
Max PCB Weight:3 kg

BASIC INFO

TRI TR7710 AOI Machine

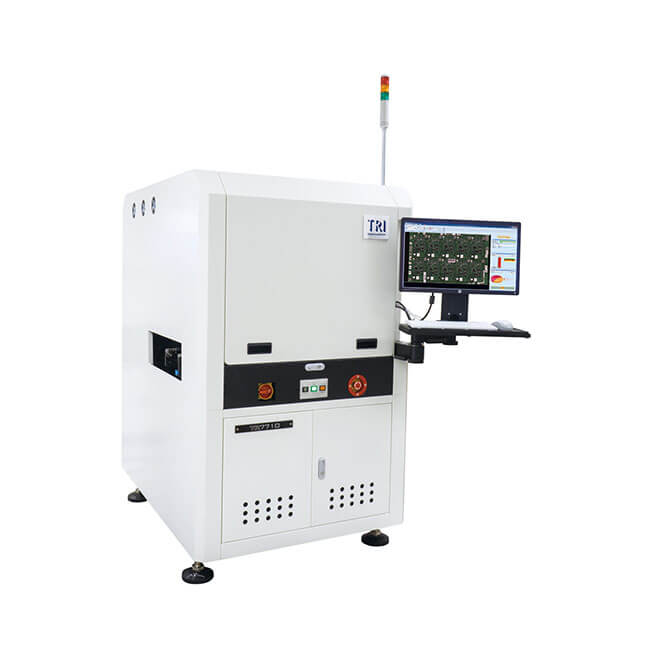

The economical customizable TR7710 combines a precise high resolution camera system and TRI&'s exclusive multi-phase lighting to capture detailed PCB panel images. New optical solution offers increased DOF range for tall components with optional high clearance. TRI Series III AOI-compatible inspection software combines excellent defect detection and easy smart CAD-based programming into a cost effective, customizable AOI solution designed to fit any budget.

Features

• Economical and highly customizable inline AOI solution
• 6.5 Mpix high speed color camera
• NPI-optimized easy programming interface wizard
• Stop-and-Go inspection with large depth of field (DOF)
• 10 µm or 12.5 µm optical resolution

Specification

Imaging Method	Stop-and-Go
Top Camera	6.5 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 12.5 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	N/A
Max. 3D Range	N/A
Inspection Performance
Imaging Speed	6.5 Mpix@ 10 µm: 27 cm²/sec
Imaging Speed	6.5 Mpix@ 12.5 µm: 42 cm²/sec
Motion Table & Control
X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm
Board Handling
Max PCB Size	TR7710@ 10 µm, 15 µm: 510 x 460 mm
Max PCB Size	TR7710 DL@ 10 µm, 12.5 µm: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	40 mm [100 mm optional]
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline
	Height: 880 – 920 mm

	* SMEMA Compatible
Inspection Functions
Component	Missing
	Tombstoning
	Billboarding
	Polarity
	Rotation
	Shift
	Wrong Marking (OCV)
	Defective
	Upside Down
	Extra Component
	Foreign Material
Solder	Excess Solder
	Insufficient Solder
	Bridging
	Through-hole Pins
	Lifted Lead
	Golden Finger
	Scratch/Contamination
Dimensions
WxDxH	TR7710: 1000 x 1400 x 1650 mm
	TR7710 DL: 1000 x 1500 x 1650 mm

	Note: not including signal tower, signal tower height 520 mm
Weight	TR7710: 600 kg
Weight	TR7710 DL: 650 kg
