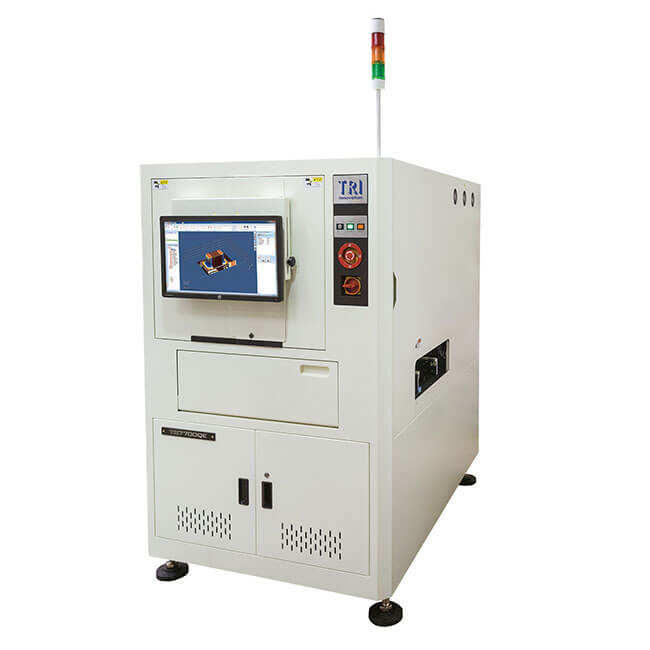

TRI TR7700QE AOI Machine
The TR7700QE AOI offers high performance 3D solder and assembly inspection by combining the next generation 2D and 3D technologies based on 4-way adaptive digital fringe pattern projection. Latest inspection software ensures quick CAD-based programming and features fully customizable templates.
Features
• Advanced 2D + 3D Coverage
• 4-way Digital Fringe Projectors
• Up to 40 mm 3D Height Range
• High Speed CoaXPress Imaging
• Optional 3D Laser Module
Specification
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | N/A |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range | 0-40 mm* |
| * Requires Z axis control. The default 3D height is 0 – 20mm | |
| Inspection Performance | |
| Imaging Speed | 12 Mpix@ 10 µm: 13.5 cm²/sec |
| 12 Mpix@ 10 µm: 23 cm²/sec with optional CoaXPress | |
| 12 Mpix@ 15 µm: 30 cm²/sec | |
| 12 Mpix@ 15 µm: 50 cm²/sec with optional CoaXPress | |
| Note: Depending on component distribution | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller (optional) |
| X-Y Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7700QE: 510 x 460 mm |
| TR7700L QE: 660 x 610 mm | |
| TR7700QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane | |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor | Inline |
| Height: 880 – 920 mm | |
| * SMEMA Compatible | |
| Inspection Functions | |
| Component | Missing |
| Tombstoning | |
| Billboarding | |
| Polarity | |
| Rotation | |
| Shift | |
| Wrong Marking (OCV) | |
| Defective | |
| Upside Down | |
| Extra Component | |
| Foreign Material | |
| Lifted Component | |
| Solder | Solder Fillet Height |
| Solder Volume % | |
| Excess Solder | |
| Insufficient Solder | |
| Bridging | |
| Through-hole Pins | |
| Lifted Lead | |
| Golden Finger | |
| Scratch/Contamination | |
| Dimensions | |
| WxDxH | TR7700QE: 1100 x 1730 x 1750 mm |
| TR7700L QE: 1250 x 1880 x 1750 mm | |
| TR7700QE DL: 1100 x 1830 x 1750 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7700QE: 920 kg |
| TR7700L QE: 1170 kg | |
| TR7700QE DL: 950 kg |
