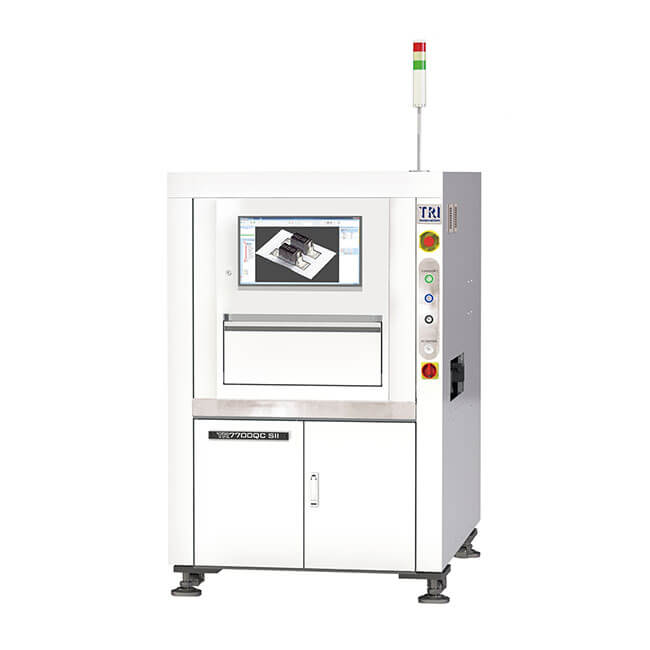

TRI TR7700QC SII AOI SMT Inspection Machine
The TR7700QC SII 3D AOI is equipped with essential inspection functionalities for multiple electronics manufacturing industry applications. The 3D AOI features user-friendly programming for easy setup, flexible IPC-610 inspection algorithms, and compliance with the latest Smart Factory standards.
Features
• 3D AOI with Essential Features for Components and Solder Joints Inspection
• User-Friendly Programming and IPC-610 Flexible Algorithms
• Industry-leading Inspection Speed of up to 57 cm2/sec
• Tall Component Inspection 3D Height Range up to 40 mm
• Smart Factory Ready Solution
Specification
|
Imaging Method |
Stop-and-Go |
|
Top Camera |
12 MP High Speed Camera |
|
Angle Camera |
N/A |
|
Imaging Resolution |
10 µm, 12 µm, 15 µm (factory setting) |
|
Lighting |
Multi-phase True Color LED |
|
3D Technology |
Quad Digital Fringe Projectors |
|
Max. 3D Range |
40 mm |
|
Inspection Performance |
|
|
Imaging Speed |
@ 10 μm: 25 cm²/sec |
|
@ 12 μm: 37 cm²/sec |
|
|
@ 15 μm: 57 cm²/sec |
|
|
Motion Table & Control |
|
|
X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
X-Y Axis Resolution |
1 μm |
|
Board Handling |
|
|
Max PCB Size |
TR7700QC SII: 510 x 460 mm |
|
TR7700MQC SII: 660 x 690 mm |
|
|
TR7700L QC SII: 765 x 610 mm |
|
|
TR7700QC SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
|
|
PCB Thickness |
0.6-5 mm |
|
Max PCB Weight |
TR7700QC SII: 3 kg. Optional: 5kg |
|
TR7700MQC SII: 3 kg. Optional: 5kg |
|
|
TR7700L QC SII: 3 kg. Optional: 5 kg / 12 kg |
|
|
TR7700QC SII DL: 3 kg. Optional: 5kg |
|
|
Top Clearance |
50 mm |
|
Bottom Clearance |
40 mm |
|
Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
|
Conveyor |
Inline Height: 880 – 920 mm |
|
|
|
|
* Optional: 940-965 mm (SMEMA compatible) |
|
|
Inspection Functions |
|
|
Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
|
Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
|
Dimensions |
|
|
WxDxH |
TR7700QC SII: 1100 x 1720 x 1710 mm |
|
TR7700MQC SII: 1250 x 1740 x 1710 mm |
|
|
TR7700L QC SII: 1365 x 1720 x 1710 mm |
|
|
TR7700QC SII DL: 1100 x 1820 x 1710 mm |
|
|
|
|
|
Note: not including signal tower, signal tower height 515 mm |
|
|
Weight |
TR7700QC SII: 910 kg |
|
TR7700MQC SII: 992 kg |
|
|
TR7700L QC SII: 1025 kg |
|
|
TR7700QC SII DL: 960 kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
