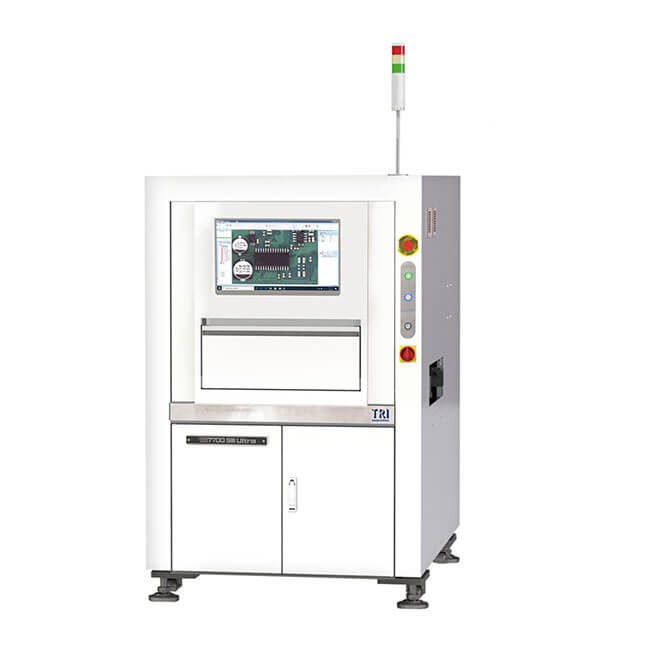

TRI TR7700 SIII Ultra AOI Machine
The TR7700 SIII Ultra is the latest High Volume AOI, built on an enhanced mechanical platform to guarantee stability, accuracy, and precision during the inspection. The High-Speed AOI is an Industry 4.0 Ready Solution, supporting the upcoming and innovative protocols such as IPC-CFX, IPC-Hermes-9852, and IPC-DPMX.
Features• Industry-leading Inspection Speed up to 120 cm²/sec
• Ready to Inspect in Minutes with TRI's Smart Programming
• High Accuracy Metrology-grade Measurements
• Enhanced mechanical Design, Increased Stability, and Precision.
• Closed Loop Ready: Feedback and Feedforward Capabilities
• Smart Factory Ready with Real-time SPC Trends
Specification
|
Imaging Method |
Dynamic Imaging |
|
Top Camera |
4 MP / 9 MP / 12 MP High Speed Color Camera |
|
Angle Camera |
N/A |
|
Imaging Resolution |
5.5 µm, 6 µm , 10 µm , 15 µm (factory setting) |
|
Lighting |
Multi-phase RGB+W LED |
|
3D Technology |
3D Laser Sensor (Optional) |
|
Max. 3D Range |
N/A |
|
Inspection Performance |
|
|
Imaging Speed |
4 MP@ 10 μm: up to 60 cm²/sec |
|
4 MP@ 15 μm: up to 120 cm²/sec |
|
|
9 MP@ 10 μm: up to 80 cm²/sec |
|
|
12 MP@ 5.5 μm: up to 32 cm²/sec |
|
|
12 MP@ 6 μm: up to 37 cm²/sec |
|
|
Motion Table & Control |
|
|
X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
X-Y Axis Resolution |
1 µm |
|
Board Handling |
|
|
Max PCB Size |
TR7700 SIII Ultra: 510 x 460 mm |
|
|
|
|
TR7700 SIII Ultra DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
|
|
PCB Thickness |
0.6-5 mm |
|
Max PCB Weight |
3 kg. Optional: 5 kg |
|
Top Clearance |
25 mm. Optional: 48 mm |
|
Bottom Clearance |
40 mm |
|
Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
|
Conveyor |
Inline Height: 880 – 920 mm |
|
|
|
|
* Optional: 940-965 mm (SMEMA compatible) |
|
|
Inspection Functions |
|
|
Component |
Missing |
|
Tombstoning |
|
|
Billboarding |
|
|
Polarity |
|
|
Rotation |
|
|
Shift |
|
|
Wrong Marking (OCV) |
|
|
Defective |
|
|
Upside Down |
|
|
Extra Component |
|
|
Foreign Material |
|
|
Solder |
Excess Solder |
|
Insufficient Solder |
|
|
Bridging |
|
|
Through-hole Pins |
|
|
Lifted Lead |
|
|
Golden Finger |
|
|
Scratch/Contamination |
|
|
Dimensions |
|
|
WxDxH |
TR7700 SIII Ultra: 1100 x 1720 x 1710 mm |
|
TR7700 SIII Ultra DL: 1365 x 1720 x 1710 mm |
|
|
|
|
|
Note: Not including signal tower, signal tower height 515 mm |
|
|
Weight |
TR7700 SIII Ultra: 940 kg |
|
TR7700 SIII Ultra DL: 960 kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
