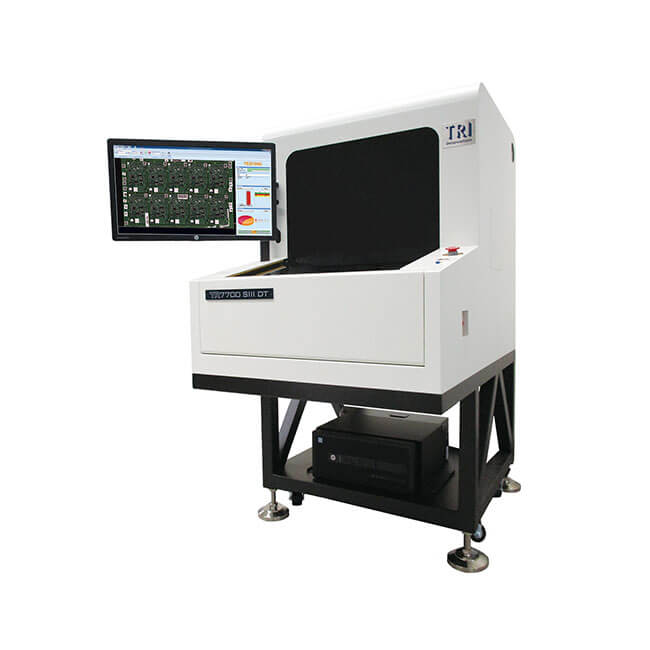

TRI TR7700 SIII DT AOI Machine

Max. 3D Range：N/A
Imaging Speed：4 Mpix@ 10 µm: 60 cm²/sec
Max PCB Size：330 x 250 mm
Max PCB Weight：3 kg

BASIC INFO

TRI TR7700 SIII DT AOI Machine

TR7700 SIII DT is a high performance desktop AOI solution designed for maximum precision and ease of use. Using TRI's exclusive multi-phase lighting and next generation inspection software, TR7700 SIII DT delivers excellent defect detection with quick & easy programming ideal for frequently changing productions.

Features

• High precision desktop AOI solution for pre/post-reflow inspection

• Quick & Easy programming with IPC standard compliance
• Advanced algorithms and multi-phase lighting for minimum false calls

Specifications

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W LED
3D Technology	N/A
Max. 3D Range	N/A
Inspection Performance
Imaging Speed	4 Mpix@ 10 µm: 60 cm²/sec
Imaging Speed	4 Mpix@ 12.5 µm: 120 cm²/sec
Motion Table & Control
X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
X-Y Axis Resolution	1 µm
Board Handling
Max PCB Size	TR7700 SIII DT: 330 x 250 mm
Max PCB Size	TR7700L SIII DT: 510 x 460 mm
PCB Thickness	3 mm
Max PCB Weight	3 kg
Top Clearance	25 mm [48 mm optional]
Bottom Clearance	TR7700 SIII DT: 100 mm
Bottom Clearance	TR7700L SIII DT: 50 mm
Edge Clearance	3 mm
Conveyor	Manual
Inspection Functions
Component	Missing
	Tombstoning
	Billboarding
	Polarity
	Rotation
	Shift
	Wrong Marking (OCV)
	Defective
	Upside Down
	Extra Component
	Foreign Material
Solder	Excess Solder
	Insufficient Solder
	Bridging
	Through-hole Pins
	Lifted Lead
	Golden Finger
	Scratch/Contamination
Dimensions
WxDxH	TR7700 SIII DT: 860 x 1100 x 1350 mm
WxDxH	TR7700L SIII DT: 980 x 1345 x 1490 mm
Weight	TR7700 SIII DT: 340 kg
Weight	TR7700L SIII DT: 385 kg
