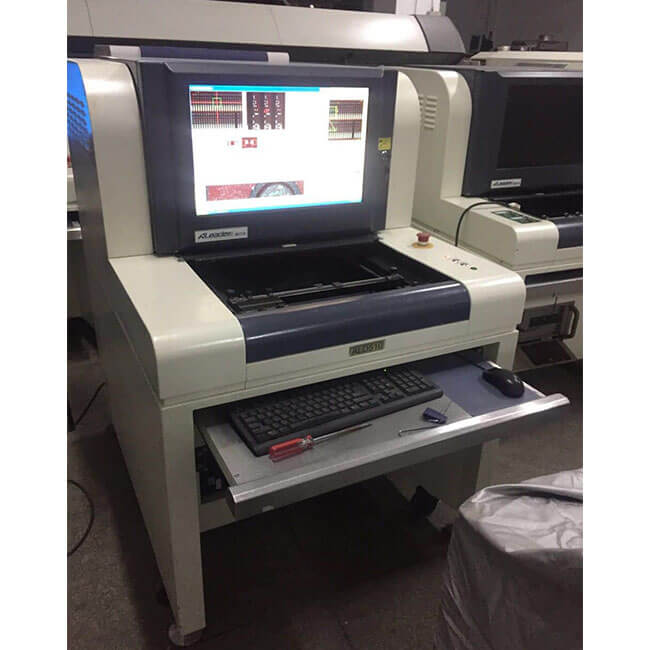

ALEADER ALD510 Offline AOI Machine

Shenzhou Vision ALD-510 detector is a product series of offline AOI, which is usually placed next to the SMT production line. It is a different product from online AOI. Online AOI can be placed on the production line and has the same operating frequency as the production line. It is one of the links in the SMT production line, while most offline AOIs are placed after the reflow soldering and are semi-automatic inspection equipment, requiring manual participation in the board placement operation. Online AOI can detect directly without manual assistance, and is a fully automatic inspection equipment.

Product Parameter：

Inspection scope: after reflow oven, after DIP wave soldering, after dispensing, keyboard characters, rivet assembly, etc.

Detection method: Statistical modeling, full-color image comparison, automatic setting of parameters according to different detection points (such as offset, polarity, short circuit, etc.)

Camera: Full color 3CCD high speed intelligent digital camera

Programming mode: manual writing, automatic drawing, CAD data import and automatic corresponding component library

Inspection coverage type: Solder paste printing: presence, offset, insufficient solder, excessive solder, disconnection, solder connection, contamination, etc.

Parts defects: missing parts, offset, skew, erection, sideways, flipped parts, wrong parts, OCV, breakage, reverse, etc.

Solder joint defects: too much tin, too little tin, cold solder joint, bridging tin, copper foil contamination, etc.

Special functions: multiple programs can run simultaneously, support automatic program retrieval; can check 0-359° rotating parts (unit is 1°)

Resolution/Visual Range/Speed0: (standard) 20μm/Pixel FOV: 32.56×24.72 Detection speed <210ms/FOV (standard) (option) 15μm/Pixel FOV: 24.42×18.54 Detection speed <190ms/FOV (optional)

Small parts test: 20μm: 0201chip & 0.3pitch IC

Inspection result output: 22-inch LCD display, OK/NG signal, send data file to Repair station (option)

PCB size range: 50×50mm (Min) ~ 430×330mm (Max) (larger sizes can be customized according to customer requirements)

PCB thickness range: 0.3 to 5 mm PCB clamping system edge clearance TOP: 3.5 mm Bottom: 3.5 mm Maximum PCB weight: 3KG

PCB curvature <5mm or 2% of the PCB diagonal length

PCB top and bottom net height: PCB top (Top Side): 30 mm

PCB bottom (Bottom Side): 65 mm

PCB fixing system: automatic opening and closing of double-sided clamps, automatic compensation; PCB bending deformation (optional)

PCB fixing system / Time: PCB moves in the Y direction into the board / out of the board time: 2.5 seconds

X/Y platform drive: stepper + magnetic scale closed loop system, positioning accuracy <10μm; PCB fixed, Camera moves in X direction
