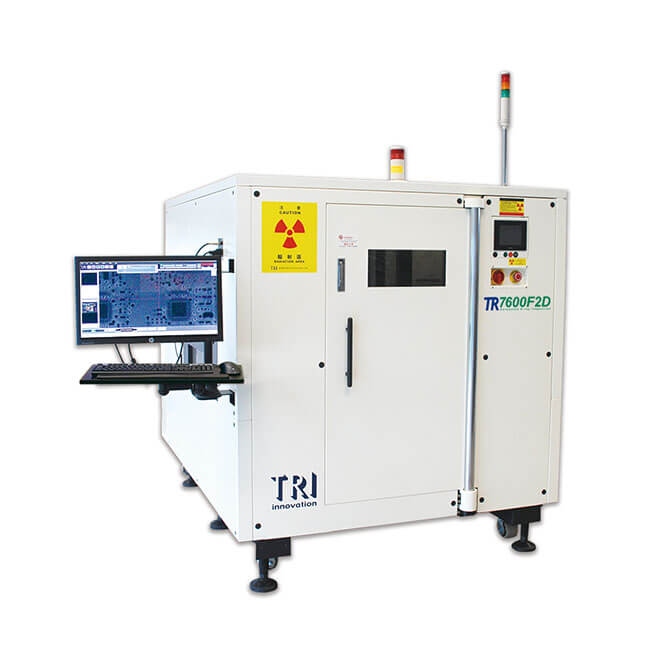

TRI TR7600F2D SMT X-ray Inspection Machine
TR7600F2D is a high-performance online 2.5D AXI, specially used to inspect single-sided assembled circuit boards and flexible board components that require high image quality. Ideal for testing electronic communication products, TR7600F2D can reliably detect tiny bubbles, 01005 solder point defects, and many QFN and BGA problems. The TR7600F2D combines fully automated programming and multi-resolution to help all production lines significantly increase output.
Features
• Ultra-high resolution, maximum testable circuit board up to 900 x 460 mm
• Automatic programming greatly saves engineers’ workload
• Multi-resolution programming and advanced processing of high-quality images
• 2D and off-axis images without shadow detection
• X-ray tube maximum value can reach 130 kV / 300 µA
Specification
|
Camera |
High resolution flat panel camera |
|
X-ray Source |
Microfocus tube 130 kV max (user adjustable) |
|
Imaging Resolution |
5 μm, 10 μm, 15 μm (factory setting) |
|
Inspection Method |
2D, 2.5D |
|
Motion Table & Control |
|
|
X-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z-Axis Control |
High-precision ballscrew + AC-servo controller |
|
XY Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
900 x 460mm |
|
PCB Thickness |
0.6-5mm |
|
Max PCB Weight |
3 kg [8 kg optional] |
|
Top Clearance |
@ 15 μm: 30 mm |
|
@ 10 μm: 20 mm |
|
|
@ 5 μm: 10 mm |
|
|
Bottom Clearance |
40mm |
|
Edge Clearance |
3mm |
|
Conveyor Height |
880 - 920 mm |
|
|
|
|
* SMEMA Compatible |
|
|
Inspection Functions |
|
|
Capabilities |
Missing |
|
Misalignment |
|
|
Tombstone |
|
|
Billboard |
|
|
Tantalum Polarity |
|
|
Rotation |
|
|
Floating |
|
|
Defects |
Insufficient/Excess Solder |
|
Bridging |
|
|
Open |
|
|
Solder Ball |
|
|
Non-wetting |
|
|
Void |
|
|
Lifted Lead |
|
|
Dimensions |
|
|
wxya |
1500 x 2060 x 1650 mm |
|
|
|
|
Note: not including signal tower, height: 515 mm |
|
|
Weight |
3250kg |
|
Power Requirement |
200 – 240 VAC single phase, 50/60 Hz, 4 kVA |
