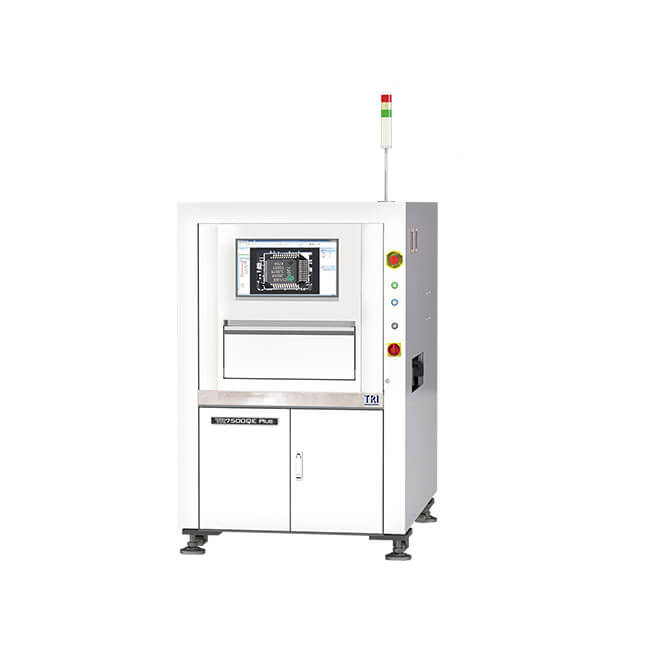

TRI TR7500QE Plus AOI Machine
The TR7500QE Plus is the next generation Multi camera side view 3D AOI. The cost-effective 3D AOI platform is equipped with innovative AI-powered algorithms and increased mechanical capabilities that offer high accuracy inspection. The Side View cameras allow the platform to inspect inner layer bridges, hidden lifted leads and other out of sight defects. The TR7500QE Plus supports current Smart Factory Standards, such as IPC-CFX and The Hermes Standard (IPC-HERMES-9852).
Features• Multi-Angle 3D Side View, 5 Cameras Inspection
• Metrology-Grade Measurements
• AI-powered Algorithms with Smart Programming
• Industry 4.0 Ready Platform
Specification
| Imaging Method | Stop-and-Go |
| Top Camera | 12 MP High Speed Camera |
| Angle Camera | 4 Angled Cameras |
| Imaging Resolution | 10 µm, 12 µm *, 15 µm (factory setting) |
| * Available for TR7500QE Plus | |
| Lighting | Multi-Phase True Color LED, Coaxial Lighting |
| 3D Technology | Digital Fringe Pattern Projectors |
| Max. 3D Range | 40 mm |
| Inspection Performance | |
| Imaging Speed | @ 10 μm: 25 cm²/sec |
| @ 12 μm: 37 cm²/sec | |
| @ 15 μm: 57 cm²/sec | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC Servo with Motion Controller (Linear Motor Optional) |
| Y-Axis Control | Dual Driven Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control | Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution | 1 μm |
| Board Handling | |
| Max PCB Size | TR7500QE Plus: 510 x 510 mm |
| TR7500QE Plus DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane | |
| TR7500L QE Plus: 765 x 610 mm | |
| PCB Thickness | 0.5 - 6 mm |
| Max PCB Weight | 3kg. Option: 4kg / 5kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm. Optional: 4 mm / 5 mm |
| Conveyor | Inline Height: 880 – 920 mm |
| * Optional: 940-965 mm (SMEMA compatible) | |
| Inspection Functions | |
| Component | Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material |
| Solder | Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
| Dimensions | |
| WxDxH | TR7500QE Plus: 1100 x 1730 x 1700 mm |
| TR7500QE Plus DL: 1100 x 2005 x 1700 mm | |
| TR7500L QE Plus: 1365 x 1865 x 1700 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7500QE Plus: 920 kg |
| TR7500QE Plus DL: 1040 kg | |
| TR7500L QE Plus: 1035 kg |
