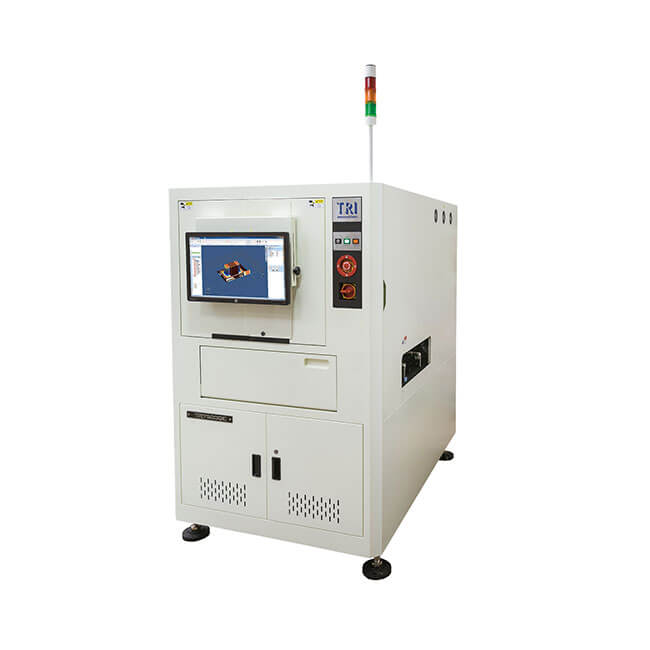

TRI TR7500QE AOI Machine
The TR7500QE AOI offers high performance 3D solder and assembly inspection by combining the next generation multi-angle 2D and 3D technologies based on 4-way adaptive digital fringe pattern projection and 4 side view cameras. Latest inspection software ensures quick CAD-based programming and features fully customizable templates.
Features
• Multi-angle 2D + 3D Coverage
• 4-way Digital Fringe Projectors
• 4 Side View Cameras
• Up to 40 mm 3D Height Range
• High Speed CoaXPress Imaging
• Optional 3D Laser Module
Specification
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | 6.5 Mpix |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range | 0-40 mm |
| Inspection Performance | |
| Imaging Speed | 12 Mpix@ 10 µm: 13.5 cm²/sec |
| 12 Mpix@ 10 µm: 23 cm²/sec with optional CoaXPress | |
| 12 Mpix@ 15 µm: 30 cm²/sec | |
| 12 Mpix@ 15 µm: 40 cm²/sec with optional CoaXPress | |
| Note: The inspection time will vary depending on the configuration | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7500QE: 510 x 460 mm |
| TR7500L QE: 660 x 610 mm | |
| TR7500QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane | |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor | Inline |
| Height: 880 – 920 mm | |
| * SMEMA Compatible | |
| Inspection Functions | |
| Component | Missing |
| Tombstoning | |
| Billboarding | |
| Polarity | |
| Rotation | |
| Shift | |
| Wrong Marking (OCV) | |
| Defective | |
| Upside Down | |
| Extra Component | |
| Foreign Material | |
| Lifted Component | |
| Solder | Solder Fillet Height |
| Solder Volume % | |
| Excess Solder | |
| Insufficient Solder | |
| Bridging | |
| Through-hole Pins | |
| Lifted Lead | |
| Golden Finger | |
| Scratch/Contamination | |
| Dimensions | |
| WxDxH | TR7500QE: 1100 x 1730 x 1750 mm |
| TR7500L QE: 1250 x 1880 x 1750 mm | |
| TR7500QE DL: 1100 x 1830 x 1750 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7500QE: 920 kg |
| TR7500L QE: 1170 kg | |
| TR7500QE DL: 950 kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
