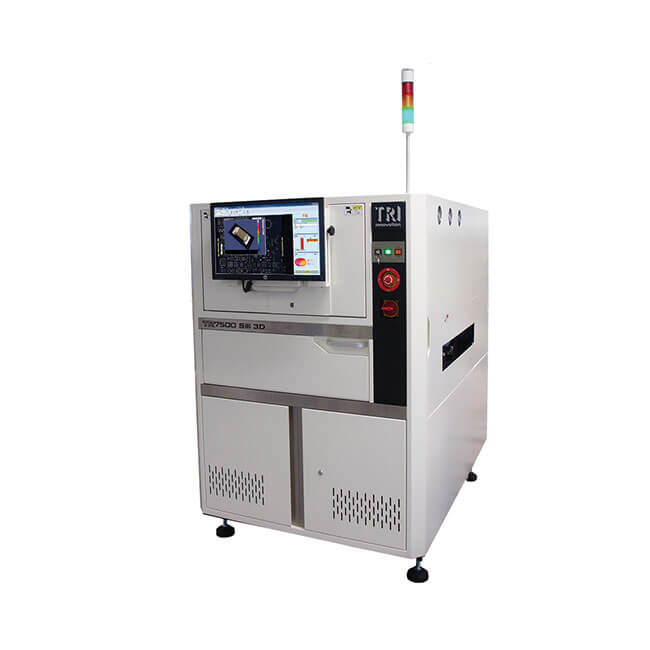

TRI TR7500 SIII 3D AOI Machine

Max. 3D Range:20 mm
Imaging Speed:4 Mpix@ 10 µm 2D: 60 cm²/sec
Max PCB Size:TR7500 SIII 3D: 510 x 460 mm*
PCB Thickness:0.6-5 mm

BASIC INFO

TRI TR7500 SIII 3D AOI Machine

TRI's optimum 3D AOI solution delivers the fastest multi-angle PCB inspection coupled with blue-laser-based true 3D profile measurement for the highest automated optical defect symptoms coverage possible. Combining state-of-the-art software solution and third generation intelligent hardware platform, the TR7500 SIII 3D offers robust 3D solder and component defect inspection and with high inspection coverage and easy programming.

Features

• High Speed Color Multi-angle Inspection of Up to 01005 Components
• High Defect Coverage Using Hybrid 2D+3D Inspection Technology
• True 3D Profile Measurement Using Dual Laser Units
• Rapid Programming Interface with Auto Library and Offline Editing

Specifications

Imaging Method	Dynamic Imaging with true 3D profile measurement
Top Camera	4 MPix
Angle Camera	1.3 Mpix or 6.5 Mpix (factory setting)
Imaging Resolution	Optical: 10 µm, 15 µm
	Laser: 10 µm (optional), 20 µm, 50 µm
	Note: Factory setting
Lighting	Multi-phase RGB+W LED
3D Technology	Single/Dual 3D laser sensors
Max. 3D Range	20 mm
Inspection Performance
Imaging Speed	4 Mpix@ 10 µm 2D: 60 cm²/sec
	4 Mpix@ 15 µm 2D: 120 cm²/sec
	4 Mpix@ 10 µm 2D+3D: 27-39 cm²/sec*
	4 Mpix@ 15 µm 2D+3D: 40-60 cm²/sec*

	* Depending on board size and laser resolution
Motion Table & Control
X-Axis Control	Ballscrew + AC-servo controller
Y-Axis Control	Ballscrew + AC-servo controller
Z-Axis Control	N/A
XY Axis Resolution	1 µm
Board Handling
Max PCB Size	TR7500 SIII 3D: 510 x 460 mm*
	TR7500L SIII 3D: 660 x 460 mm
	TR7500 SIII 3D DL: 510 x 250 mm x 2 lanes, 510 x 550 mm x 1 lane

	* The testable PCB size range will vary depending on the configuration of laser probe
PCB Thickness	0.6-5mm
Max PCB Weight	3kg
Top Clearance	15 mm/25 mm/48 mm [optional]

	Note:
	(1) Laser resolution@ 50 μm is 25 or 48 mm (optional)
	(2) Laser resolution@ 20 μm is 25 mm
	(3) Laser resolution@ 10 μm is 15 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm
Conveyor	Inline
	Height: 880 – 920 mm

	* SMEMA Compatible
Inspection Functions
Component	Missing
	Tombstoning
	Billboarding
	Polarity
	Rotation
	Shift
	Wrong Marking (OCV)
	Defective
	Upside Down
	Extra Component
	Foreign Material
	Lifted Component
Solder	Excess Solder
	Insufficient Solder
	Bridging
	Through-hole Pins
	Lifted Lead
	Golden Finger
	Scratch/Contamination
Dimensions
wxya	TR7500 SIII 3D: 1100 x 1670
	x 1550 mm TR7500L SIII 3D:
	1300 x 1630 x 1655 mm TR7500 SIII 3D DL: 1100 x 1770 x 1550 mm

	Note: not including signal tower, signal tower height 520 mm
Weight	TR7500 SIII 3D: 1010 kg
	TR7500L SIII 3D: 1250 kg
	TR7500 SIII 3D DL: 1150 kg
