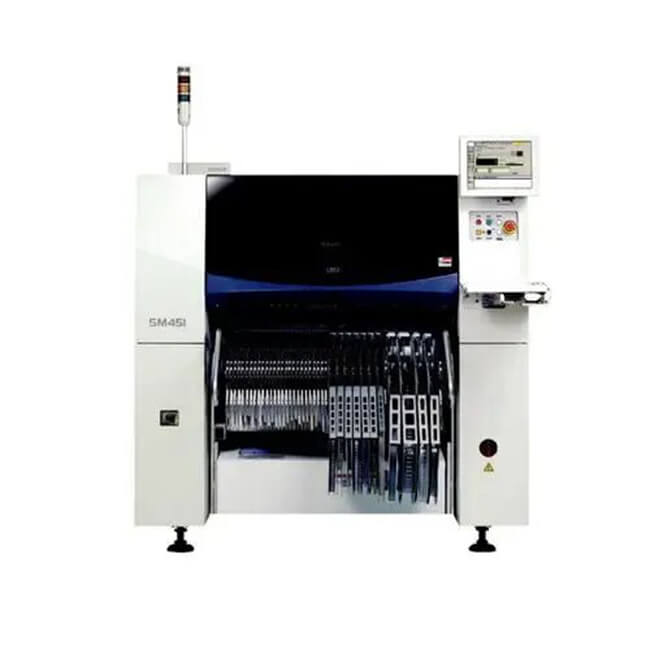

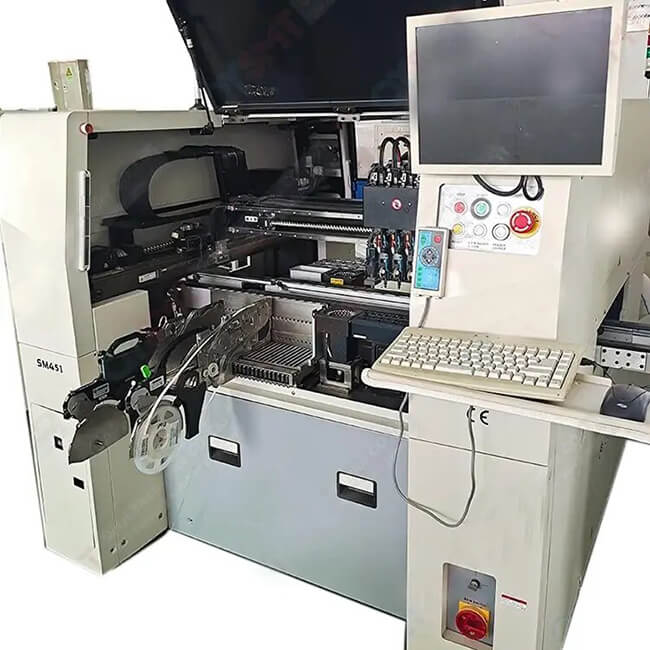

Samsung SM451 Pick and Place Machine
SM451 is a kind of to SM421 Platform based on installation of the high precision Force Control the opening of high precision multi-function machine, were applied on an x-y axis linear calibration and improved the precision of the patch, can handle 0402 microchips to - 57 x42mm IC components with Long connector, Bare Chip and PIP insert components such as a variety of different components. And can support up to 28 mm element height, Gripper suction nozzle, POP, pin suspended examination and reflection on the back of recognition, such as performance, effectively perform special components SMT homework.
|
Mount speed: Chip 8.5 K CPH (IPC9850) The corresponding components: Max. 0402-57 x42mm ∴ Components (H = 28 mm) |
The thickness of the PCB: 0.38 4.2 mm SMT precision 50 Л @ レ + 3 ヲ / Chip 25 Л @ レ + 3 ヲ / QFP |
|
The corresponding PCBs: L460 W420 x x 1 lane (Standard) Max. L610 W460 x x 1 lane Number of feeder: Number 120 ea / 112 ea (feeder) |
Energy consumption: Power consumption AC200/208/220/240/380/415 v (50/60 hz, 3 phase) Max. 4.7 kva 0.5 0.7 MPa gas consumption (5.1 to 7.1 KGF/cm2) 220 n/min The dimensions: 1650 (L) x 1690 (D) x 1485 (H) Weight: 1630 kg |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
