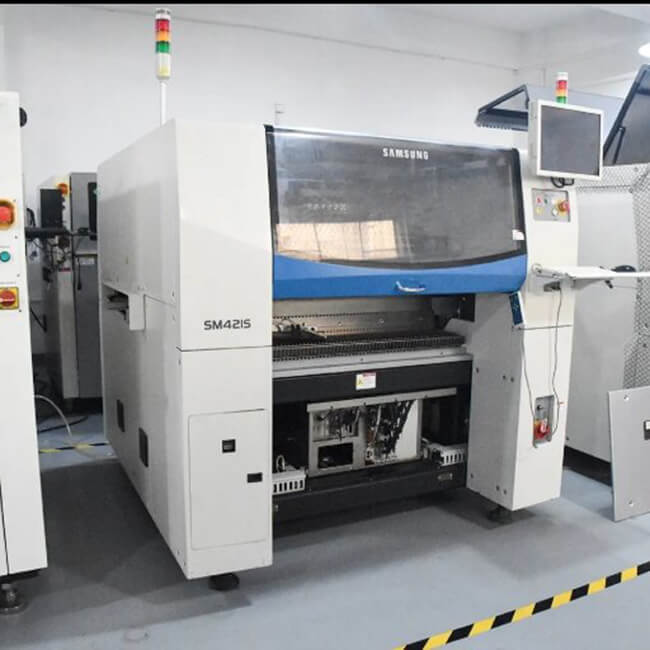

Samsung SM421S Pick and Place Machine

Placement Speed : 21,000 CPH
Applicable PCB : 460(L) x 400(W)
Applicable Part : 0402 (01005) Chip ~ □ 55mm
Accuracy: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP

BASIC INFO

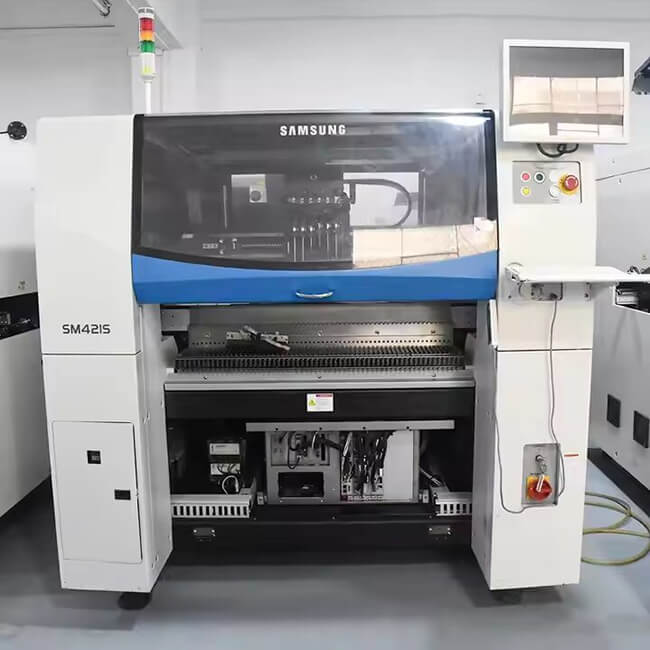

Samsung SM421S Pick and Place Machine

The SM421 uses the Samsung's patented On The Fly identification system, which fits quickly from

0603 tiny chips to 22mmIC components. It also features high pixel vision in the Stage Camera to
identify standard 42mm, 0.4mm precision micro-pitch components with a 45mm camera.

IC components can be mounted with high precision of 30 microns, and polygon recognition

algorithms are also supported. Components with complex shapes can be easily mounted.
The best performance at the same level, the production capacity of 20-40% higher than the same level.

New non-stop refueling feeder to improve efficiency, semi-electric operation, stability and high

reliability. Easy operation, programming line changing speed Fast. Offline programming,
Line balancing and other software functions are complete, with Chinese display less wearing parts,
low maintenance costs, low noise, low energy consumption and cost savings.

Samsung SM421 parameters

Mounting Speed: 21,000 CPH / Chip (IPC9850 Reference)
5,500 CPH / QFP (IPC9850 Baseline)
- Placement: ± 50μm @ 3σ / Chip, ± 30μm @ 3σ / QFP
- Component Range: Max, 0402 (01005) Chip ~ □ 55mm
0603 (0201) Chip ~ 55mm (standard)
Chip Theoretical Speed 21,000 CPH / Chip
Mounting range 0603 tiny chip to □ 22mmIC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) x 400 (W) mm
Device Size 1650 (L) x 1690 (D) x 1485 (H)
- PCB:
460 (L) x 400 (W) mm
510 (L) x 460 (W) mm (option)
610 (L) x 510 (W) mm (option)
-IT and batch tracking system
- Feeder: Max. 120 (8mm feeders)
- Feeder: Max. 60 (8mm feeders) SM421S
- Dimensions: 1650 (L) x 1690 (D) x 1485 (H)
