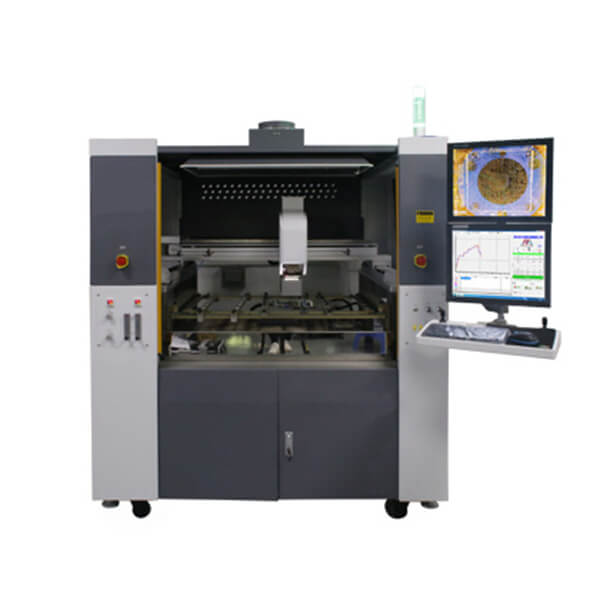

R8000B Large Precision BGA Rework Station

PCB Size: 800*660mm(Max)
BGA Chip Size: 80*80mm(Max)
IR Heater Size : 850*580mm
Temperature Sensor: 5 Pcs

BASIC INFO

R8000B Large Precision BGA Rework Station

R8000B Surface Mount/SMD BGA rework station is a large-scale precision rework station. This BGA rework system has a self-tuning temperature curve, large-area preheating platform, automatic feeding and adsorption, high-performance, multi-loop heating system.

1.Large Area Preheating Platform

Independent three-temperature zone, the upper-temperature zone uses ceramic heaters, the preheating zone adopts German imported medium-wave ceramic infrared heating plates like infrared rework station, each plate can be controlled independently, and the preheating area can be adjusted according to the PCB board size. The large heating area of 850*580mm is suitable for the repair of larger PCB boards. The preheating zone automatically adjusts the distance from the PCB board to achieve the best performance.

2.Self-Tuning Temperature Curve

Industrial PC and servo motion control system for precise control, with multiple operating modes, real-time display and editing of temperature curves, each curve can be set to more than 12 segments, curve analysis can be performed automatically, and temperature curves can be automatically generated into massive log files and saved, which are convenient to recall the historical parameters and trace the abnormal quality. With over-temperature protection and alarm function, the software can be encrypted and foolproof.

3.Automatic Feeding and Adsorption

The heating head has a built-in vacuum tube for chip adsorption, electrically controlled 360 degree rotation alignment, with negative pressure monitoring, and automatic feeder device to realize automatic feeding and automatic receiving. With memory function, it can complete the desoldering and adsorption of the chip with one key, and the operation is simple.

4.HD Optical Inspection Module

Imported HD CCS (2m pixels) optical alignment system, which automatically moves the optical lens alignment through PC control servo system. 17dual screens are used to display the alignment effect and operation interface respectively. The alignment function does not interfere with the operating system and the operation is convenient.

5.High-performance, Multi-loop Heating System

External uses 5-channel temperature measurement interface, internal adopts high-precision K-type thermocouple with accuracy up to ± 1 ℃, it has dynamic PID multi-loop closed control selective reflow soldering process. At the same time, it can be connected with nitrogen heating to protect PCBA from oxidation and yellowing. Flowmeter negative pressure is precisely adjusted.

Specification

Power Supply	AC380V±10% 50/60HZ
Power	Total power27.65KW
	Upper temperature zone(1.45KW)
	Lower temperature zone(1.2KW)
	Other power(1.8KW)
	Preheating temperature zone(23.2KW)
PCB Size	800660mm(Max); 1010mm(Min)
BGA Chip Size	8080mm(Max); 22mm(Min)
IR Heater Size	850*580mm
Motion Control	X/Y/Z
Temperature Sensor	5 Pcs
Control System	Industrial PC+ Servo motion control system
Display System	17"HD industrial display(1080P16:9)+17"SD display
Alignment System	2 Million pixels HD digital imaging system, automatic optical zoom, laser red-dot indicator
Vacuum Adsorption	Automatic
Alignment Accuracy	±0.01mm
Temperature Control	K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device	Yes
Positioning	L-groove with universal fixture (shaped fixture can be customized)
Dimensions	L1620W1370H1950mm
Weight	840.5KG
