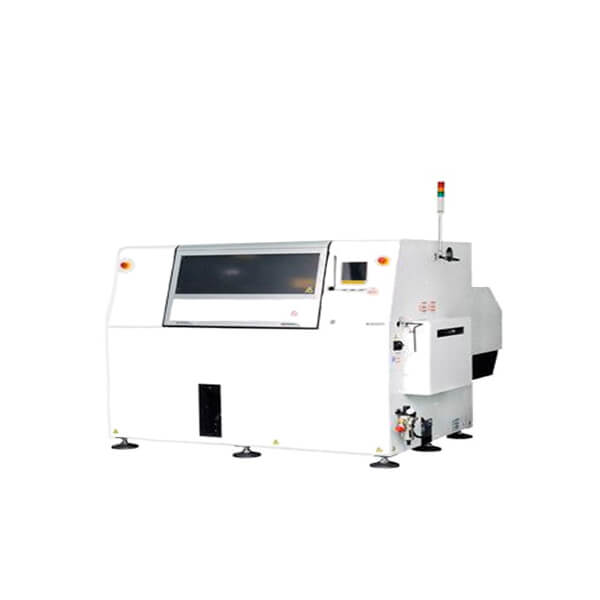

Panasonic Radial Lead Component Insertion Machine RL132

PCB Dimensions (mm): L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed: 0.14 s/component
No. of Component Inputs: 40
Insertion Direction: 360° direction by 1° increment

BASIC INFO

Panasonic Radial Lead Component Insertion Machine RL132

1. The Panasonic Connect RL132 high-speed radial lead component insertion machine offers generation-ahead technology in a spatially-efficient footprint.

2. The RL132's combination of 25,700 CPH (.14s/component) insertion rates, board processing sizes up to 650 x 381mm, a 33% reduction in PCB transfer time, up to 18% reduction in electrical and air consumption per insertion and an improved perishable parts lifespan results in a very low cost of ownership.

3. This through-hole machine features a 4 pitch span and is configurable with 40 or 80 components inputs. Meanwhile, its dual split carriage enables machine function at exchange mode and parts replenishment during production. Plus exhaust detection and full auto-recovery allow for non-stop productivity.

Key Features

- High-speed radial insertion at 25,700 CPH with 40 or 80 inputs.

- Wide pitch range encompassing 2.5/5.0/7.5 and 10mm pitch in a common platform- eliminating the need for post insertion manual placements of 10 mm pitch components

- Auto-recovery and part exhaust detection

- Enhanced programmable T-Clinch technology ensures interference-free insertions by eliminating shorts on underside layout

- Wide component range up to 23mm in height with 0° to 359° insertion angles

Featured Specs

SKU	NM-EJR5A/NM-EJR6A
Model ID	RL132
Model No.	NM-EJR5A
PCB Dimensions (mm)	L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed	0.14 s/component
No. of Component Inputs	40
Applicable Components	Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	360° direction by 1° increment
Electric Source *	3-phase AC 200 V, 3.5 kVA
Electric Source *	[*1]
Pneumatic Source	0.5 MPa, 80 L /min (A.N.R.)
Dimensions (mm) *	W 2,104 x D 2,183 x H 1,575
Dimensions (mm) *	[*2]
Mass *	1,750 kg
Mass *	[*3]
Model No.	NM-EJR6A
PCB Dimensions (mm)	L 50 x W 50 to L 508 x W 381
Maximum Speed	0.14 s/component
No. of Component Inputs	80 (Connection mode), 40 + 40 (Exchange mode)
Applicable Components	Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	360° direction by 1° increment
Electric Source *	3-phase AC 200 V, 3.5 kVA
Electric Source *	[*1]
Pneumatic Source	0.5 MPa, 80 L /min (A.N.R.)
Dimensions (mm) *	W 3,200 x D 2,417 x H 1,575
Dimensions (mm) *	[*2]
Mass *	2,350 kg
Mass *	[*3]
