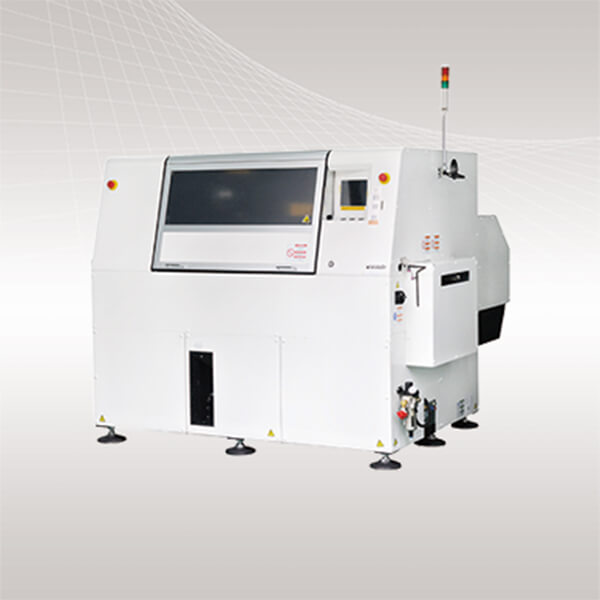

Panasonic AV132 Axial Insertion Machine

PCB Dimensions (mm): L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed : 0.12 s/component
No. of Component Inputs: 40 + 40 + JW (JW is optional)
PCB Exchange Time: About 2.0 s

BASIC INFO

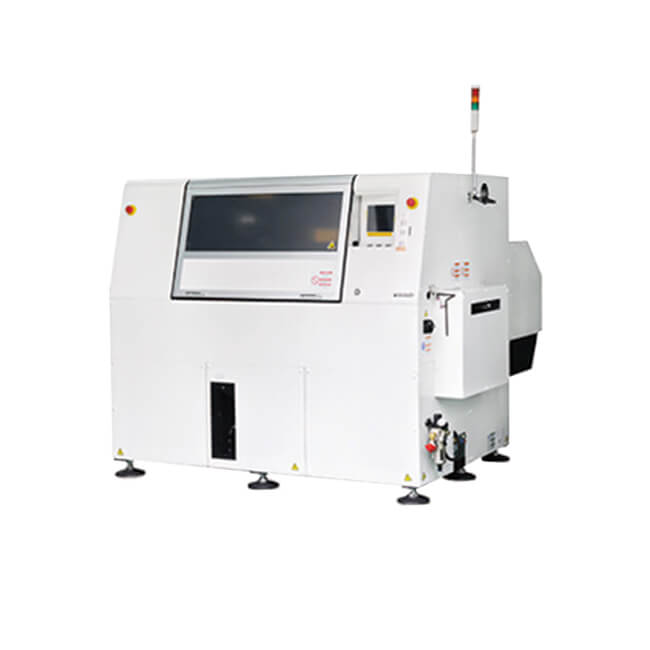

Panasonic AV132 Axial Insertion Machine

High production efficiency and low-cost production through technological innovation.

Highly efficient production

- Sequence type components supply system, 0.12 s/component and approx. 2 s/PCB change time

- The fixed component feeder unit and the out-of-component detection feature allows replenishing components beforehand for long-term non-stop operation.

- A full auto-recovery function is provided capable of handling insertion errors automatically for non-stop production for a long time.

Improved operability

- The liquid crystal touch screen is employed for the control panel and easy operation can be provided by the operation guidance indication.

- Setup changeover support functions that display the component layout of the component supply unit on the screen are provided.

- Maintenance support functions that display information of regular check timing and operation content are provided.

Enlargement function option

- Large-size PCB support option allows hole recognition and insertion up to PCB size of Max. 650 mm x 381 mm.

- 2 PCB transfer option can decrease PCB loading time by half and increase productivity.

Features and Benefits of “High speed Axial Lead Component Insertion Machine AV132”

Increased productivity, max. speed 0.12 s/component

- Tact 0.12 s

- 22,000 CPH

- Sequence method component supply 40/80 stations

Sequence method component supply

The fixed component supply unit allows non-stop production.

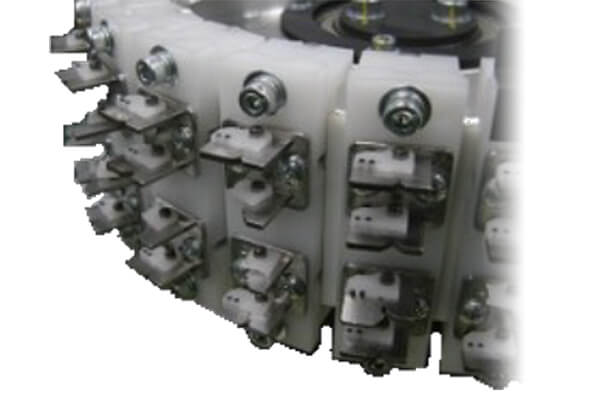

Sequencer belt

Increased production efficiency

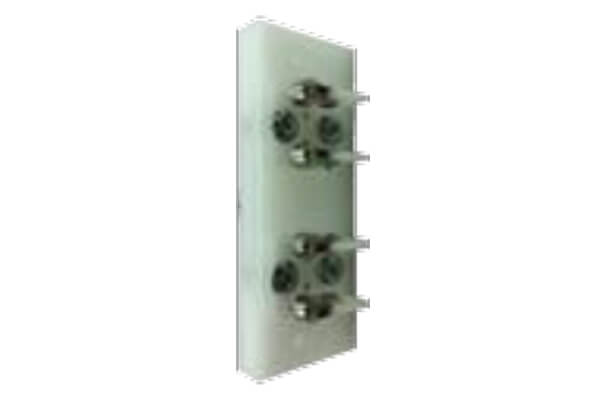

Pallet
Common for 26 and 52 mm

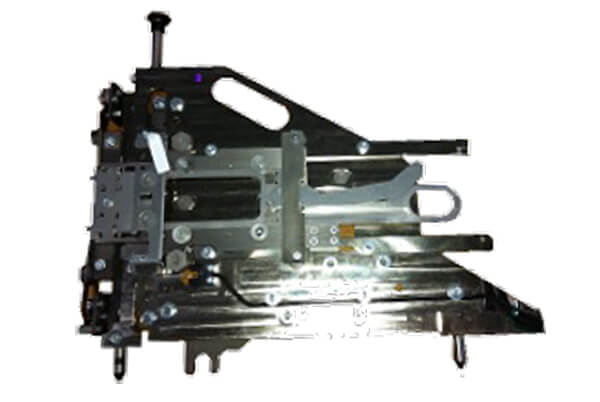

Automated feeder
Component supply quality increase

Featured Specs

SKU	NM-EJA6A/NM-EJA5A
Model ID	AV132
Model No.	NM-EJA6A
PCB Dimensions (mm)	L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed *	0.12 s/component
Maximum Speed *	[*1]
No. of Component Inputs	40 + 40 + JW (JW is optional)
Applicable Components	Resistors 1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB Exchange Time	About 2.0 s
Insertion Direction	4 directions (0°, 90°, 180°, 270°)
Electric Source *	3-phase AC 200 V, 3.5 kVA
Electric Source *	[*2]
Pneumatic Source	0.5 MPa, 200 L/min (A.N.R.)
Dimensions (mm) *	W 3,106 mm x D 2,300 mm x H 1,575 mm
Dimensions (mm) *	[*3]
Mass *	2,648 kg
Mass *	[*4}
Model No.	NM-EJA5A
PCB Dimensions (mm)	L 50 x W 50 to L 508 x W 381
Maximum Speed *	0.12 s/component
Maximum Speed *	[*1]
No. of Component Inputs	40 + JW (JW is optional)
Applicable Components	Resistors 1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB Exchange Time	About 2.0 s
Insertion Direction	4 directions (0°, 90°, 180°, 270°)
Electric Source *	3-phase AC 200 V, 3.5 kVA
Electric Source *	[*2]
Pneumatic Source	0.5 MPa, 200 L/min (A.N.R.)
Dimensions (mm) *	W 2,104 x D 2,300 x H 1,575
Dimensions (mm) *	[*3]
Mass *	2,228 kg
Mass *	[*4]
