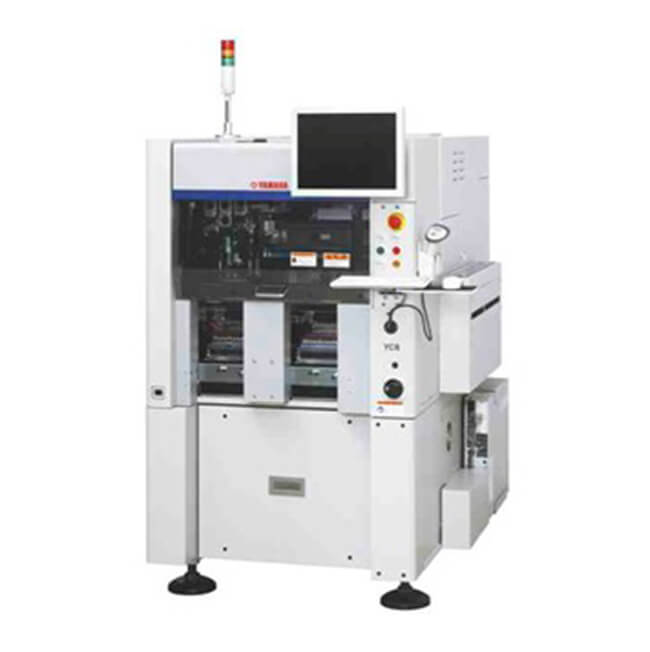

Yamaha YC8 surface mounter

Placement Speed : 2.5sec/chip
Applicable PCB :300*360mm
Applicable Part : 4 mm×4 mm to 100 mm×100 mm
Accuracy: ±0.05 mm/QFP

BASIC INFO

Yamaha YC8 surface mounter

(1)Outstanding mounting capability
●Features a head stroke of 100 mm and a capacity to mount taller components of up to 45 mm in height
●Has the ability to handle heavier components weighing up to 1 kg and the capability to pressure-insert components

(2)Optional equipment for good flexibility across a wide range of operations
●Adopts an automatic nozzle station capable of automatically exchanging large φ25 mm nozzles
●Utilizes the ATS15 automatic tray supply unit capable of handling up to 15 trays

(3)Compact machine width of 880 mm allows for more efficient use of factory floor space
Easy to position in the work spaces previously used for manual operations

(4)Compatible with the "SS Feeder" and "ZS Feeder" electric-drive intelligent tape feeders that employ microcomputer control to provide high-speed components supply and high-accuracy components positioning, thus ensuring excellent job setup efficiency and enabling job failure prevention functions.

(5)High level of mounting quality
Yamaha's MACS(*1) system for multi-staged mounting accuracy compensation is adopted on this model. This system provides comprehensive compensation for deviations in the numerous factors involved in accuracy multiple times, ensures a mounting accuracy level of ±0.05 mm at all times.
*1 MACS:Multiple Accuracy Compensation System.

Model name	YC8
Applicable PCB	L50×W50 mm to L330×W360 mm
Mounting accuracy	Absolute accuracy (μ+3σ): ±0.05 mm/QFP
	Repeatability (3σ): ±0.03 mm/QFP
Mounting capability	2.5sec/chip
Mountable components	Component size: 4 mm×4 mm to 100 mm×100 mm
	(Some sizes bigger than 45 mm × 45 mm with conditions)
	Component height: Maximum of 45 mm
Maximum transportable mass	1 kg
Component supply/Number of component types	Tape reel: 28 types (Max., 8 mm tape reel conversion)
	Stick
	Trays: Capacity for up to 15 trays
Power supply	3-phase AC 200/208/220/240/380/400/416V±10%
Air supply	0.45MPa or more
External dimensions	L880×W1,440×H1,445 mm (Main body)
(excluding protrusions)	L880×W1,765×H1,500 mm (when equipped with ATS15)
Weight	Approx. 1,000 kg
