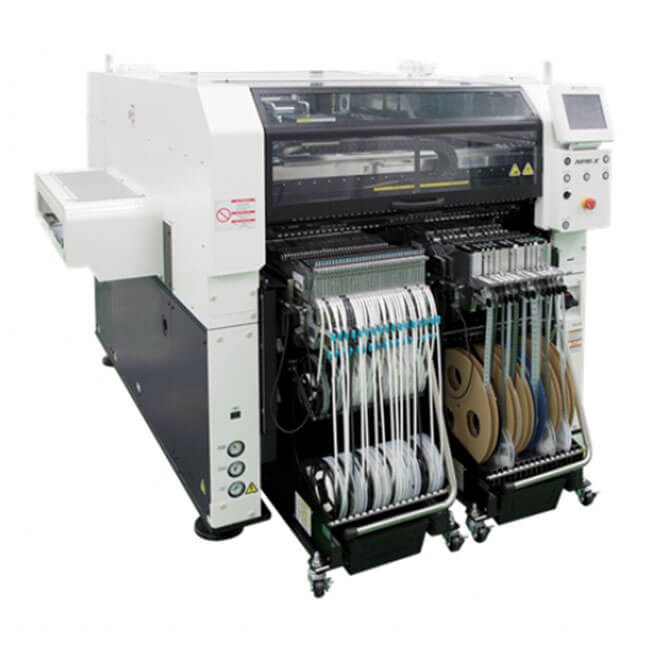

Panasonic NPM-WX Pick and place machinec
We propose a mounting line to achieve a smart factory with high productivity and high quality geared toward labor-saving.
Evolved basic performance
High productivity and high-quality mounting
Comparison with W2 (productivity, accuracy)
Expansion of production style
Various feeder configurationsNew tray feeder (24-component type tray feeder)
Realization of smart factories - Labor-saving functions
Automatic recovery 1, 2 remote operation AOI display function
Realization of smart factories - Quality improvement functions
Recognition before pickup
Features and Benefits of “Modular Placement Machine NPM-WX”

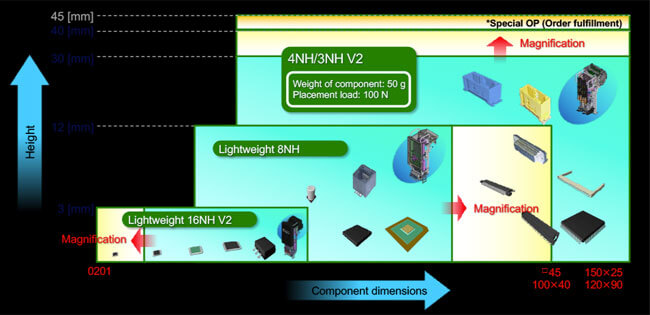

Realization of flexible line configuration with expansion of compatible components for various placement heads
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
SKU
NM-EJM9D
Model ID
NPM-WX
Model No.
NM-EJM9D
PCB Dimensions (mm)*
Single-lane
Batch Mounting: L 50 × W 50 ～ L 750 × W 610
2-Position Mounting: L 50 × W 50 ～ L 350 × W 610
PCB Dimensions (mm)*
Dual-lane
Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 300
Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 300
Single transfer (Batch): L 50 × W 50 ~ L 750 × W 590
Single transfer (2-position): L 50 × W 50 ~ L 350 × W 590
Electric Source
3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA
Pneumatic Source *
Min. 0.5 MPa, 200 L /min（A.N.R.)
[*1]
Dimensions (mm) *
W 1,410 mm [*2] × D 2,570 mm [*3] × H 1,444 mm [*4]
Mass
2,740 kg
(Only for main body : This differs depending on the option configuration.
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
