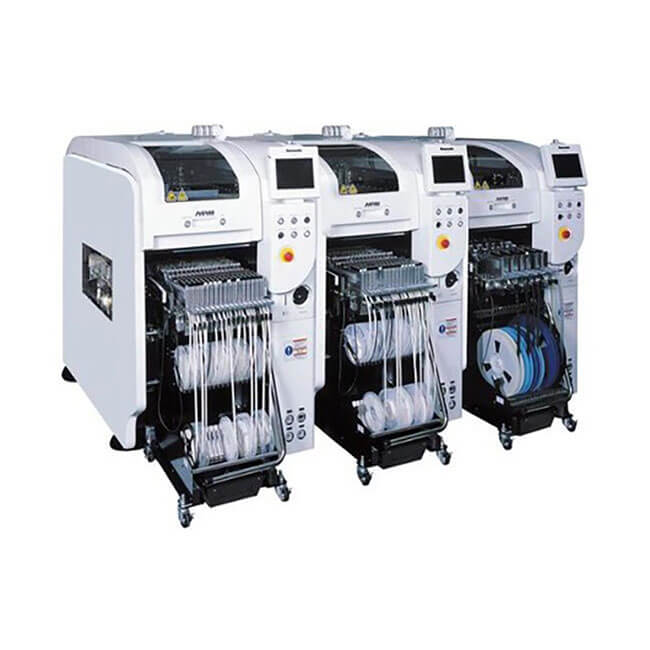

Panasonic NPM-D3A Pick and place machine

Max PCB:L 510 × W 590mm
Placing Speed: 46000CPH
Max Feeder: 68 reels
Placement accuracy（Cpk≧1）:±37 μm/chip ±30 μm / chip（±25 μm / chip *5 ）

BASIC INFO

Panasonic NPM-D3A Pick and place machine

High-speed, high-precision placement is achieved, providing improvement in the O.E.E. value that customers can feel.

Dual placement method for complete independent mounting

Improved basic performance that achieves even higher mounting speed and precision

Improved O.E.E. that maximizes production volume

Features and Benefits of “Production Modular NPM-D3A”

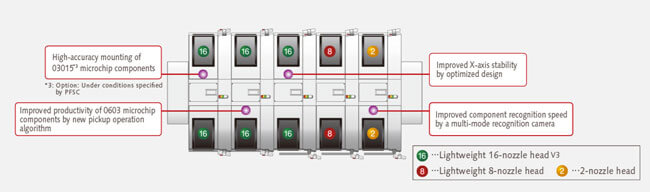

A maximum speed of 92,000 CPH is achieved by adopting the lightweight 16-nozzle head V3

(For placement accuracy of ±37 μm)

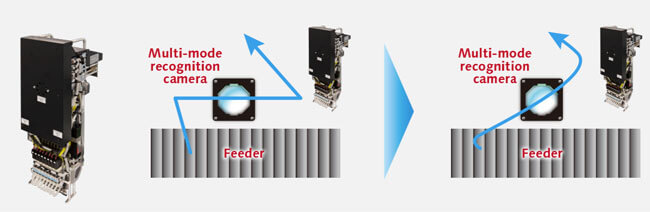

The lightweight 16-nozzle head V3 can drive the X- and Y-axes simultaneously during component recognition, thus improving the placement tact time by selecting optimal pathways

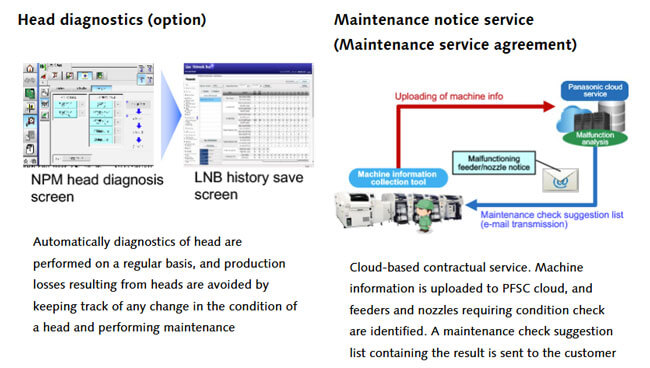

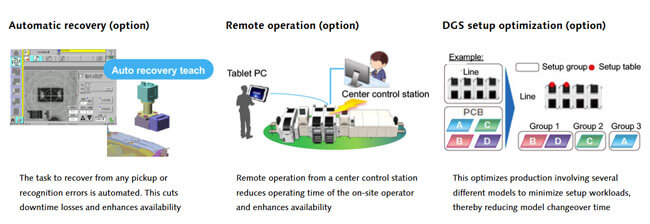

Introduction to the improvement in O.E.E of NPM-D3A and its maintenance functions

SKU	NM-EJM4D
Model ID	NPM-D3A
Model No.	NM-EJM6E
PCB Dimensions (mm)*	Dual-Lane Mode: L 50 × W50 ~ L 510 × W 300
	Single-Lane Mode: L 50 × W50 ~ L 510 × W 590
	[*1]
PCB Exchange Time *	Dual-Lane Mode: 0s* *No 0s when cycle time is 3.6 s or less
PCB Exchange Time *	Single-Lane Mode: 3.6s* *When selecting short conveyors
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
Pneumatic Source *	0.5 MPa, 100 L /min (A.N.R.)
Pneumatic Source *	[*2]
Dimensions (mm) *	W 832 × D 2,652 [3] × H 1,444 [4]
Dimensions (mm) *	[*2]
Mass	1 680 kg (Only for main body : This differs depending on the option configuration.)
