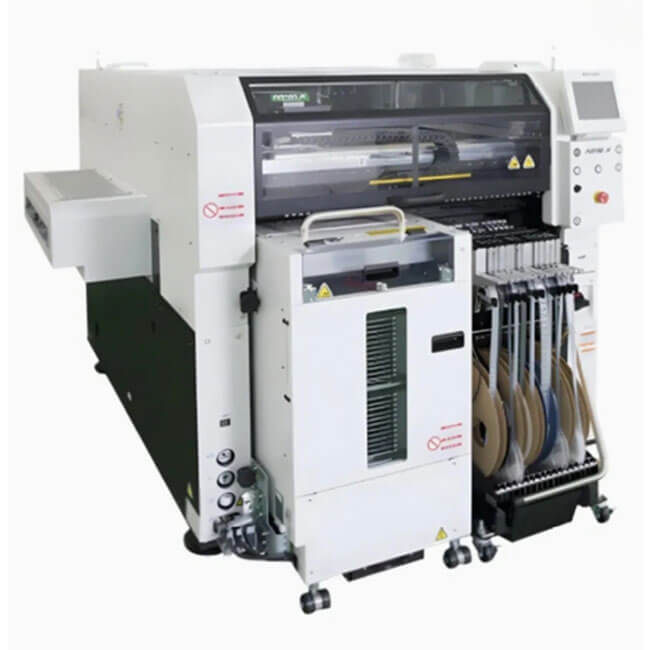

Panasonic NPM-WXS Pick and place machine

Max PCB:L 750 × W 610mm
Placing Speed: 86000CPH
Placement accuracy（Cpk≧1）：±20 μm / QFP ±20 μm / QFP
Weight: 2740kg

BASIC INFO

Panasonic NPM-WXS Pick and place machine

Smart manufacturing

More line throughput, better quality and lower cost with fully automated mounting system floor
Stable operation based on the autonomic function - Autonomous line control
APC system and automatic recovery option
Labor-saving, improved utilization - Concentrated control
Floor management system and remote operation option
Reduced work variations - Navigation/automated items
Feeder setup navigation, component supply navigation and automated items

Model ID		NPM-WX pick and place machine	NPM-WXS pick and place machine
Model No.		NM-EJM9D	NM-EJM2E
PCB	Single-lane mode	Batch mounting : L 50 × W 50 ~ L 750 × W 610
dimensions		2-position mounting : L 50 × W 50 ~ L 350 × W 610
(mm)	Dual-lane mode	Dual transfer (Batch) : L 50 × W 50 ~ L 750 × W 300
		Dual transfer (2-position) : L50 × W 50 ~ L 350 × W 300
		Single transfer (Batch) : L 50 × W 50 ~ L 750 × W 590
		Single transfer (2-position) : L50 × W 50 ~ L 350 × W 590
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA	3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA
Pneumatic source *1		Min.0.5 MPa、200 L /min (A.N.R.)
Dimensions (mm)		W 1 410 2 × D 2 570 3 × H 1 444 *4
Mass		2 740 kg	2 660kg
		(Only for main body : This differs depending on the option configuration.)	(Only for main body : This differs depending on the option configuration.)
Placement head		1 head on each side (front, rear)	1 head (rear camera is optional)
Component	Taping	Tape : 4 ~ 56 / 72 / 88 / 104 mm
supply		Front rear 17-slot feeder cart specifications : Max. 136 product types (4, 8mm tape)
	Stick	Front rear 17-slot feeder cart specifications :	Front rear 17-slot feeder cart specifications :
		Max. 32 product types (single stick feeder)	Max. 16 product types *5 (single stick feeder)
	Tray	One side tray specifications : Max.24, Front-rear tray specifications : Max.48

Placement head	Lightweight	Lightweight	4-nozzle head	3-nozzle head V2
	16-nozzle head V2	8-nozzle head	(Per head)	(Per head)
	(Per head)	(Per head)
Max. speed	43 000 cph	23 000 cph	8 400 cph	9 400 cph
	(0.084 s / chip)	(0.155 s / chip)	(0.429 s / chip)	(0.383 s / chip)
			7 800 cph	7 300 cph
			(0.462 s / QFP feeder)	(0.493 s / QFP feeder)
			7 100 cph	6 350 cph
			(0.507 s / QFP tray) *8	(0.567 s / QFP tray) *9
Placement accuracy	±25 μm/ chip	±25 μm/ chip	±20 μm/ QFP	±20 μm/ QFP
(Cpk≧1)		±40 μm/QFP □12 mm Under
		±25 μm/QFP □12 mm ~ □32 mm
Component dimensions	0201 chip 67 / 03015 chip *6	0402 chip *6 ~ L 45 × W 45 × T 12 or L 100 × W 40 × T 12	0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40	0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40
