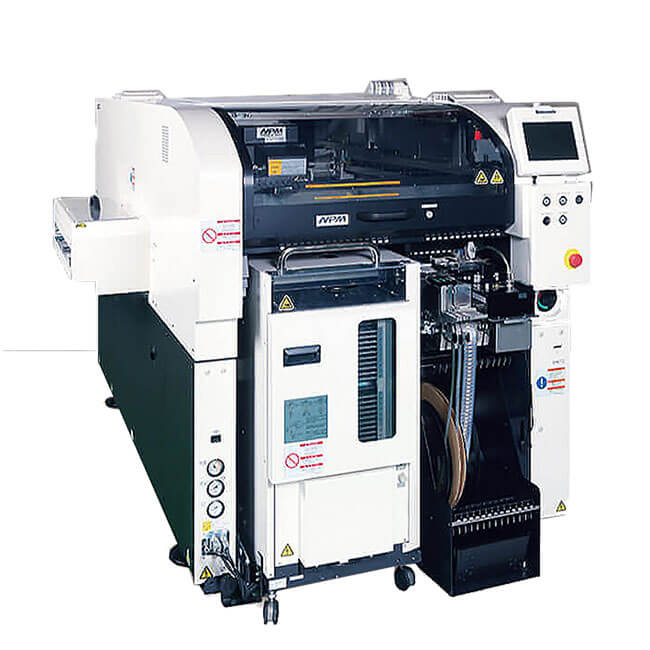

Panasonic NPM-TT2 Pick and place machine
Various production types are supported through high-speed and highly efficient mounting of odd-form components.
Direct connectivity with NPM-D3A/NPM-W2
Placement heads (lightweight 8-nozzle head, 3-nozzle head V2)
Selectable and configurable supply unit specifications
Adoption of multi-mode recognition camera
Alternate and independent mounting support
Features and Benefits of “Production Modular NPM-TT2”
High-speed and highly efficient placement of odd-form components is achieved by arranging the tray feeders at front/rear, thus contributing to total productivity improvement

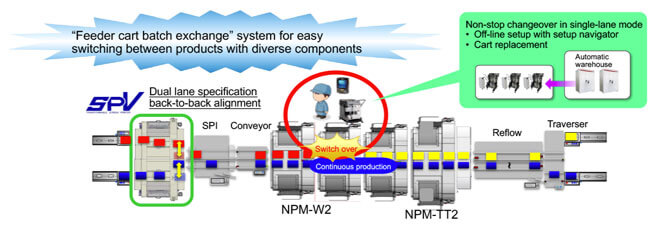

Non-stop line setup with independent mounting
Suitable for “medium to large lot production” and “on-vehicle repair components” that cannot have common arrays
Independent mounting of tray components is achieved by directly linking NPM-TT2 with NPM-DX/D3/W2 dual lane specification!

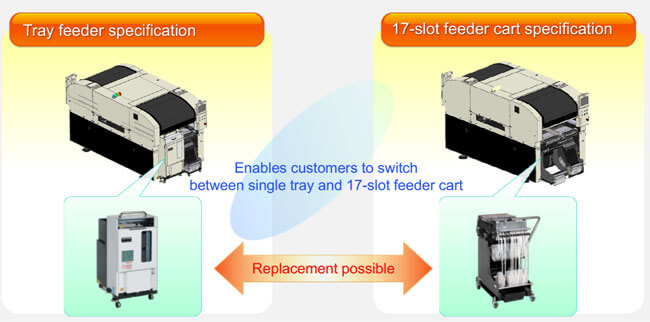

Easy switching between tray feeder and 17-slot feeder cart
| Model ID | PANASONIC NPM-TT2 Surface Mount Pick and Place Machine |
| PCB Dimensions (mm) | PC size |
| Single-lane mode: L 50 x W 50 ~ L 510 x W 590 | |
| Dual-lane mode: L 50 x W 50 ~ L 510 x W 300 | |
| PCB Dimensions (mm) | M size |
| Single-lane mode: L 50 x W 50 ~ L 510 x W 510 | |
| Dual-lane mode: L 50 x W 50 ~ L 510 x W 260 | |
| PCB Exchange Time | Single-lane mode: 4.0 s (With no component mounted on the reverse side of PCB) |
| Dual-lane mode: 0 s* *No 0s when cycle time is 4.0 s or less | |
| Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA |
| Pneumatic Source | Min.0.5 MPa, 200 L /min (A.N.R.) |
| Dimensions (mm) | W 1,300 [*2] x D 2,798 [*3] x H 1,444 [*4] |
| [*1] | |
| Mass | 2,690 kg |
| (Only for main body : This differs depending on the option configuration) |
