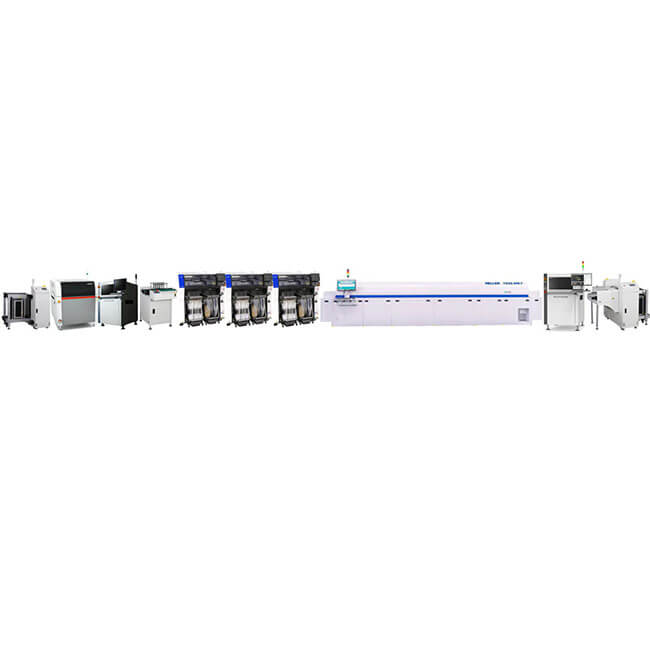

Panasonic NPM-GW SMT Assembly line

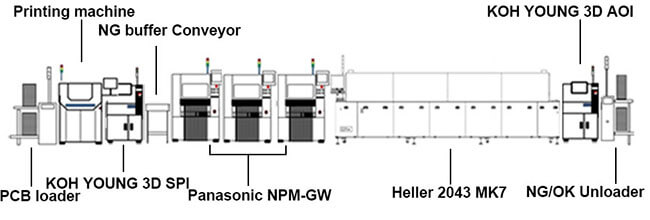

Panasonic NPM-GW SMT Assembly line configuration:
1.PCB Loader
2.SMT stencil Printer DEK NeoHorizon 03 iX
3.KOH YOUNG KY8030-3 3D SPI
4.NG buffer Conveyor
5.Panasonic NPM-GW*2 FC16 Head *4 Pick and place machine
6.Panasonic NPM-GW FC8+FC3 Head Pick and place machine
7.Heller 2043 MK7 SMT reflow oven
8.KOH YOUNG ZENITH 3D AOI
9.NG/OK Unloader
Placement Speed: 244,500 CPH
Accuracy:±25 μm @ Chip
Feeder Capacity(8mm): 360ea
Component Range: Applicable Part :0201-L120*W90*T40/T45 or L150*W25*T40/T45 mm
PCB size(mm):Max. L762*W685
1. PCB loader
PCB frame loading machine is a kind of automatic loading equipment for electronic components PCB board. It is usually composed of a conveying system, a positioning system, and an upper plate manipulator.
The working principle is to place the PCB board and component material that need to be mounted on the board in the material frame, and send the material frame to the machine through the conveying system. Then, the positioning system is used to accurately locate the position of the PCB board, and then the components are removed from the material frame by the upper board manipulator and placed on the PCB board accurately.
2. SMT stencil Printer DEK NeoHorizon 03iX
DEK NeoHorizon Solder paste printer
Maximum flexibility for the integrated smart factory
With its modular and scalable configuration options, the DEK NeoHorizon printer meets any process requirements and offers best flexibility for any production volumes
DEK NeoHorizon Innovations
Best printing offering to cover all your needs
DEK NeoHorizon 03 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 20μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±25 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 8 sec.
Perfect printing solution for best performance in high-mix production
DEK NeoHorizon 01 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 15μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±20 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 6.5 sec.
Best printing quality with maximum throughput
DEK NeoHorizon Back-to-Back:
The DEK NeoHorizon Back-to-Back setup offers higher print performance in dual-lane assembly line.
DEK NeoHorizon Options
DEK provides the industry’s most powerful and flexible printing platforms. The following retrofittable DEK options help you further improve productivity and print quality on your DEK NeoHorizon printer:
1.Full flexible DEK All Purpose Clamping (APC) system
2.High flexibility and maximum cleaning performance with DEK Typhoon Cleaner
3.DEK Grid-Lok: the universal board support system
4.DEK Paste Management: the best combination of automated paste dispensing with paste roll height control
5.Closed loop to SPI systems with ProDEK
6.DEK Multiple Alignment of Singulated Substrates (MASS) offers a solution for individual optical alignment at a very high speed to boost your throughput
3.KOH YOUNG KY8030-3 3D SPI
World-Fastest Full 3D Solder Paste Inspection
The industry’s fastest full 3D measuring inspection solution- Solves shadow problems by utilizing 2-way projection- Full 3D foreign material inspection for the entire PCB- Provides accurate inspection data with real-time PCB warp compensation·Full 3D data-based process optimization solution: Realization of industry 4.0 / smart factory- Realizes real-time process optimization through powerful SPC analytics- Provides a powerful printing process optimization tool·Leading model for high-speed mass production line
4.SMT NG buffer Conveyor
● Exterior structure: plate gold structure and aluminum profile into the frame, the surface spray treatment and the color is wavy white.
● Microcomputer PLC control system works stably and reliably.
● Operating by touch screen, with automatic fault diagnosis function, convenient man-machine dialogue.
● Multiple sound and light and touch screen inside prompt alarm function.
● Using stepper motor to transmission.
● The bad board can be stored 10 pcs by rising and the good boards can be directly transported to the next machine.
● Applicable behind AOI and SPI devices.
● Double line number to distinguish NG\OK.
5. Panasonic NPM-GW Pick and Place Machine
Key features and functions
Support large components and large PCBs to meet the increasing demand for Electric Vehicles (EV) and DX
5M process control “APC-5M” for good production and stable operation
Various skill-less and manpower-saving features including Auto Setting Feeder
* 5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement
Features
Modular mounter with wide range of components/PCBs compatibility
The basic performance of this modular mounter has been improved by renewing the core units, such as the placement head and recognition camera. It now supports a wide range of components and various components supply configurations, and can also handle larger PCBs. It also supports various automation and manpower-saving functions, including the Auto Setting Feeder (ASF), which automates the components supply operation, to flexibly meet the requirements of each mounting site.

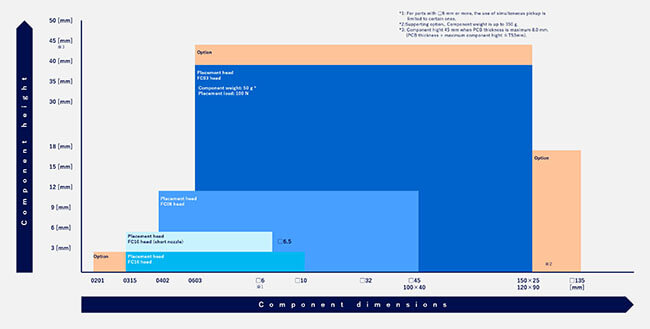

Supported components range

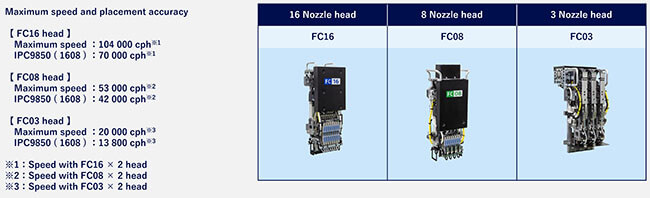

Maximum speed and placement accuracy

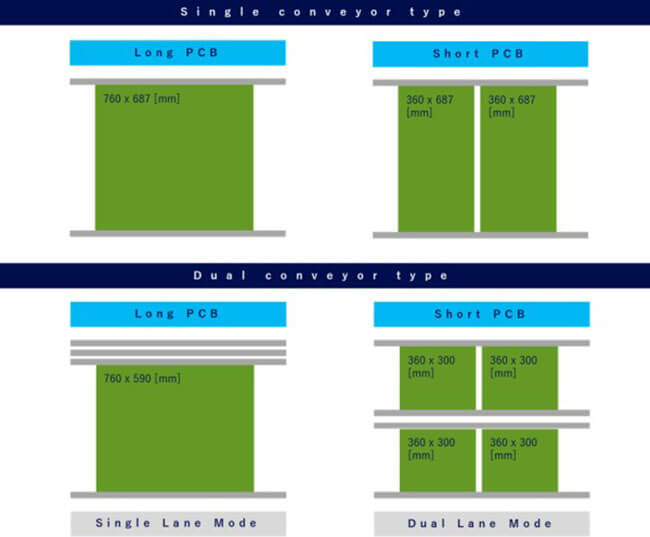

Supported PCB size

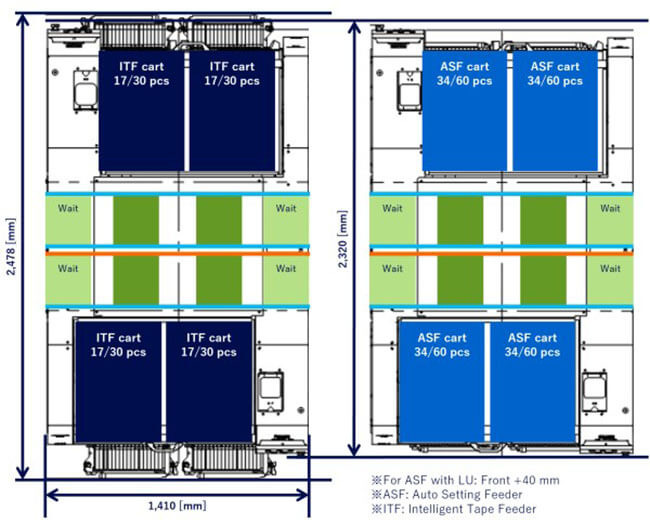

Configuration example

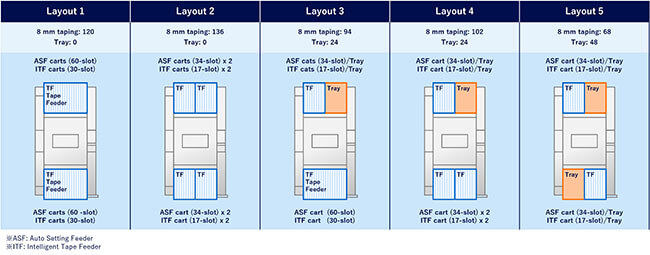

Example configuration

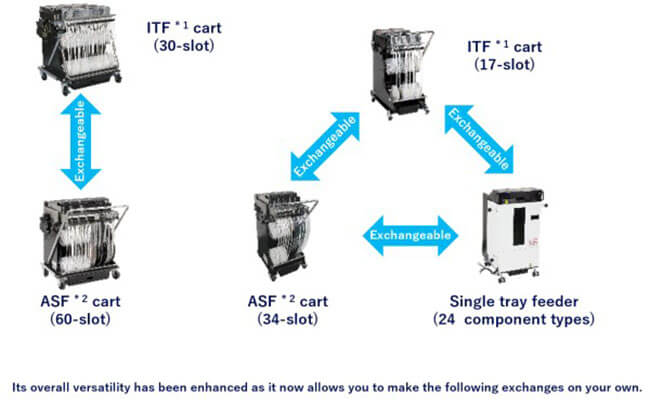

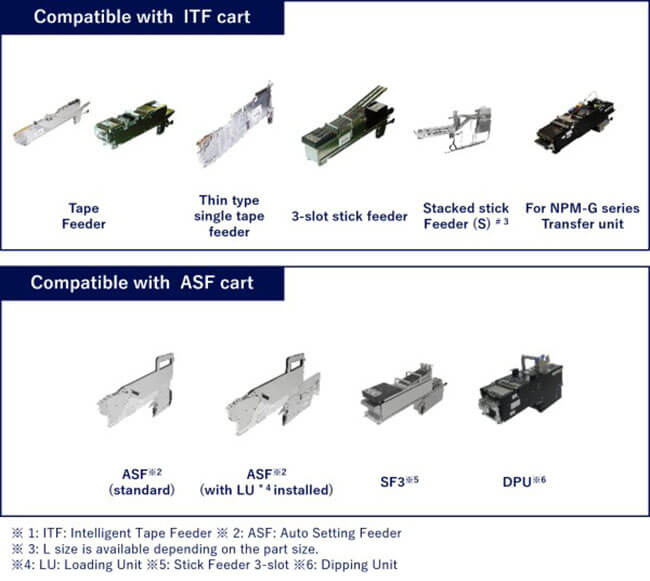

Component supply units
6.HELLER 2043 MK7 SMT Reflow Soldering Oven
The 2043 MK7 reflow oven machine is an ultra-high volume reflow oven with 13 heated zones and belt speeds up to 1.88m/min. The 2043 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options. The 12” wide heater modules offer profile compatibility with competitor systems.
- Built-in Thermal Monitoring
- Nitrogen Capable to < 100 ppm
- Energy Management System
- Virtually No Maintenance
- 12” Wide Heater Modules
Oven Length | 723cm (285”) |
Process Gas Options | Air, Nitrogen |
Heated Zones | Convection: 13 Top / 13 Bottom |
Heated Length | 449 cm (177”) |
Cool Zones | 3 Top (Bottom Option) |
Max Working Temperature | Standard: 350°C (Option: 400°C) |
Maximum PCB Width | 55.9cm (22”) |
Cleanroom Option |
Down to Class 1000 |
7. KOH YOUNG ZENITH 3D AOI
Ultimate Solution for Inspection Challenges
Circuit boards are becoming more complex with new products. An AOI machine is becoming even more crucial to the electronics manufacturing lines. The industry has many2D, 2.5D and pseudo-3D inspection options that only compound issues with false calls and escapes. The Zenith AOI Series is the only machine that delivers True 3D Inspection to address solutions caused by highly specular packages and shadows from adjacent parts.
Incomparable True 3D Inspection Performance
The Zenith AOI Series is the only solution in the industry to base its inspection criteria according to IPC-610 standards for electronic assembly acceptability requirements. It provides clear and precise AOI measurements to accurately identify multiple defects such as missing solder, offset, polarity, upside down, OCV/OCR, solder fillet, billboarding, lifted lead, lifted body, tombstone, bridging, and more. Because it uses a quantitative True 3D measurement-based approach, the system delivers exceptional accuracy and repeatability.
IPC-based Solder Joint Inspection
Through Koh Young’s proprietary vison algorithms, the Zenith Series can quantify the exact height of a solder joint. Despite shadows or interreflection challenges, the Zenith accurately inspects and measures according to IPC-610 standards for electronic assembly acceptability requirements.
AI-Powered Auto Programming (KAP)
Industry-leading 3D profilometry technology converges with Koh Young’s proprietary AI technology to deliver true automatic programming. The innovative geometry-based Koh Young Auto Programming (KAP) software solution reduces the programming process to minimizes time to production and reduces costs.
KSMART Solutions: True 3D Measurement-based Process Control System
Koh Young pioneered True 3D measurement technology 20 years ago to create a zero-defect
8.NGOK Unloader Machine

According to signal recognition, NG board and OK board are automatically collected into two lifting turnover boxes respectively; The NG\OK receiver is connected with AOI, after AOI detection to determine the good (OK) and bad (NG) output different signals, the signal is transmitted to the next NG\OK receiver, the NG\OK receiver receives the signal sent by AOI for judgment, and the PCB is automatically classified and stored in the OK and NG material frame; Such as: AOI output OK signal through NG\OK judgment into the moving trolley directly into the OK lifting trolley material frame; The AOI output NG signal is judged by NG\OK into the moving car and transferred to the material frame of the NG lifting car at the back.
Appearance structure :3mm thick sheet metal structure and aluminum profiles into the frame, surface spray treatment, color is corrugated white.
Microcomputer original Panasonic PLC control system, stable and reliable work.
Touch screen display operation, with automatic fault diagnosis function, man-machine dialogue is convenient.
Multiple sound, light and touch screen prompt alarm function.
The lifting step of the rack can be set according to the PCB thickness.
With automatic counting function, convenient production statistics.
Humanized design ensures that the PCB board is not broken and improves the output capacity
The bottom connecting PCB board uses a motor to push the board into the material frame
Stepper motor push plate, strength, speed can be set on the touch screen,
The push-plate device uses the Omron groove sensor to protect the PCB board from being pushed out
Push the PCB board can set the push distance in the touch screen
The OK plate is loaded into the front material frame, and the NG plate is loaded into the fabric frame.
Double line number distinguish NG\OK
