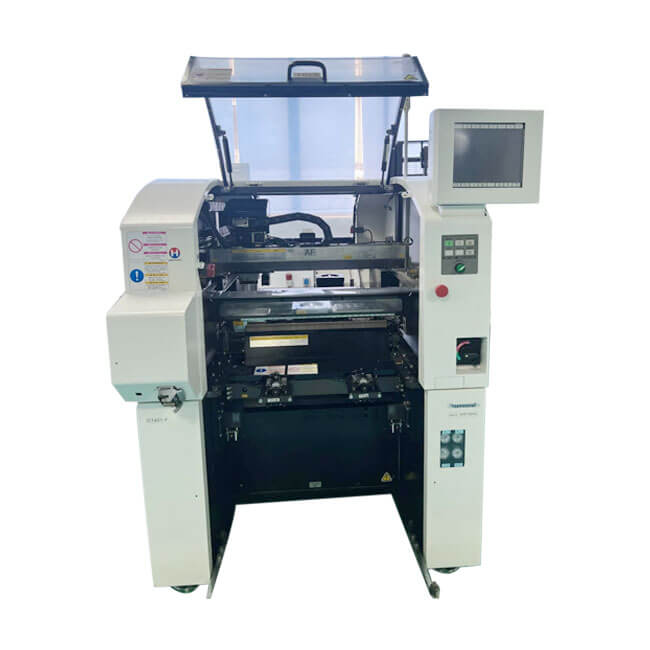

Panasonic DT401MF Pick And Place Machine

Mount accuracy +-50um/ chip cpk>1, +-35um/QFP() Cpk>1

BASIC INFO

Panasonic DT401MF Pick And Place Machine

Achieve a wide range of component mapping capabilities and high precision mounting of modular multifunctional mounters corresponding to direct adsorption pallets.

Directly adsorb the tray feeder and the rack in a single exchange trolley to improve the operation rate.

Direct absorption is adopted
The load transfer mounting head directly adsorbs the tray elements and can be used for high-speed mounting of various odd-shaped components

Pallet supply in motion
The feeding part of the device in the upper part of the feeder is used to supply the tray without stopping production
Stock rack primary exchange car
The braided rack can be replaced at one time when the machine type is changed

Standard equipment pressure control mounting head, corresponding to the plug-in connector
The pressure control mounting head can be mounted to most plug-in connectors through a 3-link device, achieving a maximum pressure of 50N.
Use can correspond to 1 005 chips to BGA,CSP, connectors and other large components
With a wide range of component mapping capabilities, it can mount 1 005 chips to BGA,CSP, connectors and other large components.
Using CM402 common only chemical rack
There are 5 types of braided racks that can adjust the feed spacing, corresponding to all braided varieties, and also have bulk racks
