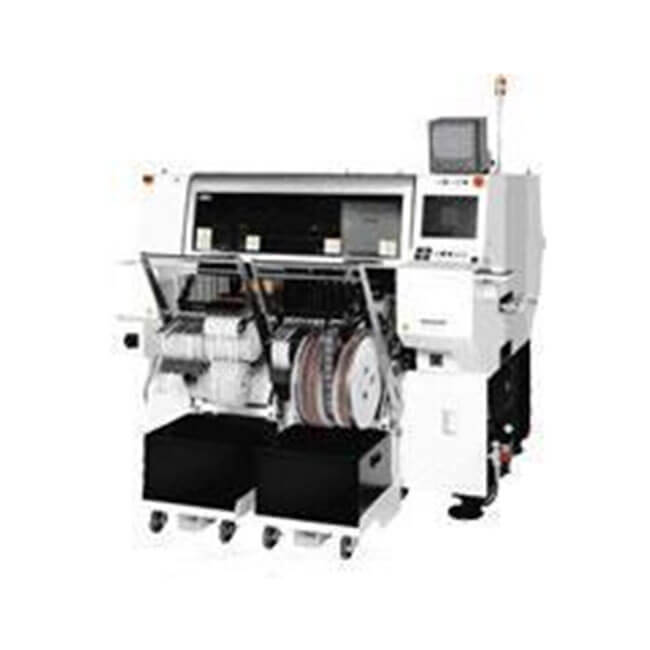

Panasonic CM201 Pick and place machine
Sector Specification(CM202-DS) Specification(CM201-DS)
ModelNo. KXF-E24C KXF-E14C
TactTime 0.088sec/chip 0.176sec/chip
B'd change 시간 3.0 sec
Centering 방식 Upward Vision
기판 Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm
장착각도 0°~ 359° θ ±1° 장착정도 ±0.05mm/chip
FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder)
대응부품 0603 ~ □24mm x 6t
Feeder종류 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/
Tray Feeder
Conv.Transfer Right→Left(Left→Right:Op.)FrontFix(RearFix :Op.)
Power AC200V 3PH,50/60Hz, 2.5kVA AC200V 3PH,50/60Hz, 1.5kVA
Air 0.49MPa 400L/min 0.49MPa 200L/min
Dimension(LxWxH)mm
2350 x 1950 x 1430
1390 x 1950 x 1430
Weight(kg) 2620 1460
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
