Panasonic CM201-DS Pick and place machine

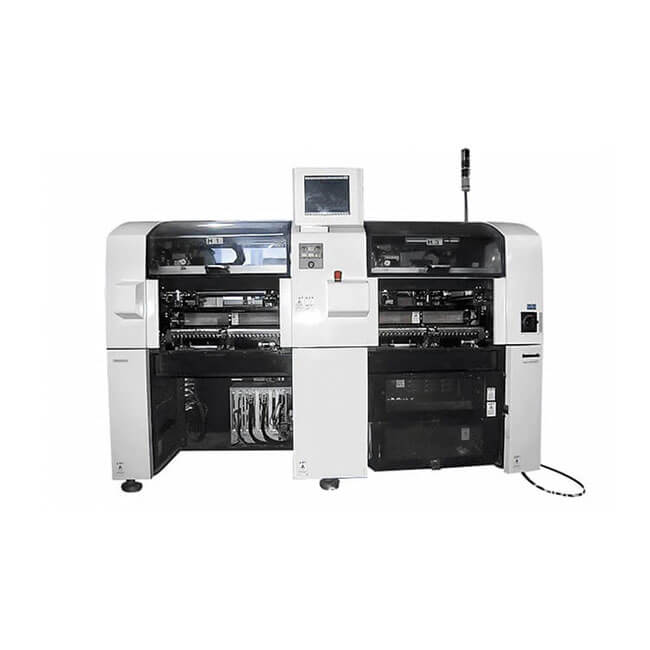

Panasonic CM201-DS and CM202-DS Modular High-Speed Placement Machine
Panasonic CM201-DS and CM202-DS are designed with a tape-splicing feature and the during-operation component-supply capability, the line availability has improved and high quality is achieved. And also, the optional double slide table enables the changeover during operation. The “board side clamp”, “unit for double tape feeder” and “vacuum sensor which monitors the nozzle tip status” are included as standard equipment, and have increased the reliability of placing. The all-chip batch recognition feature offers high-speed and high-quality placing. This machine has the capability of using various kinds of components ranging from 0603 (0201") chips to large ones (Max. 24 mm × 24 mm) such as PLCC, and also supports the bump recognition of BGA/CSP as an option. The automatic calibration feature always keeps excellent placement accuracy. It is very easy to maintain by virtue of its compact and simple structure
| Sector Specification(CM202-DS) Specification(CM201-DS) |
| ModelNo. KXF-E24C KXF-E14C |
| TactTime 0.088sec/chip 0.176sec/chip |
| Board change: 3.0 sec |
| Centering method: Upward Vision |
| PCB Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm |
| Placement range: 0°~ 359° θ ±1° Patch Accuracy: ±0.05mm/chip |
| FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder) |
| Components range: 0603 ~ 24mm x 6t |
| Feeder: 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/ |
| Tray Feeder |
| Conv.Transfer Right→Left(Left→Right:Op.) FrontFix (RearFix :Op.) |
| Power AC200V 3PH,50/60Hz, 2.5kVA AC200V 3PH,50/60Hz, 1.5kVA |
| Air 0.49MPa 400L/min 0.49MPa 200L/min |
| Dimension(LxWxH)mm |
| 2350 x 1950 x 1430 |
| 1390 x 1950 x 1430 |
| Weight(kg) 2620 1460 |
