Nordson X Series X-ray Inspection Machine

Footprint： 1630 mm (H) x 1800 mm (W) x 1575 mm (D)
Operation Temperature ：15° - 28°C optimal 20° - 25° C
Max. sample size：460 mm x 360 mm
System Weight：2.800 kg

BASIC INFO

Nordson X Series X-ray Inspection Machine

Overview

The X-platform series is a dedicated high speed inline automated X-ray inspection system for the inspection of PCB-assembly boards for single/multipanels or samples in trays. The system offers market leading inspection speed and is ideal for low-mix high-volume production environment.

Four In One - Advanced Technology

X-ray System Features

High Speed AXI System for Inline configurations

Microfocus X-ray tube (sealed tube / maintenance free)

Multiple programmable motion system with linear drives

Digital CMOS flatpanel detector

Automatic grey-level and geometrical calibration

Barcode scanner for serial number and product type selection

Full product traceability via customized MES-Interface

Highlights

Hardware setup dedicated to PCB inspection

High Speed setup for In-line pass through configuration

High oblique angle

Low dose radiation filter

Available Configurations

Depending on the type of product & inspection task

Applications

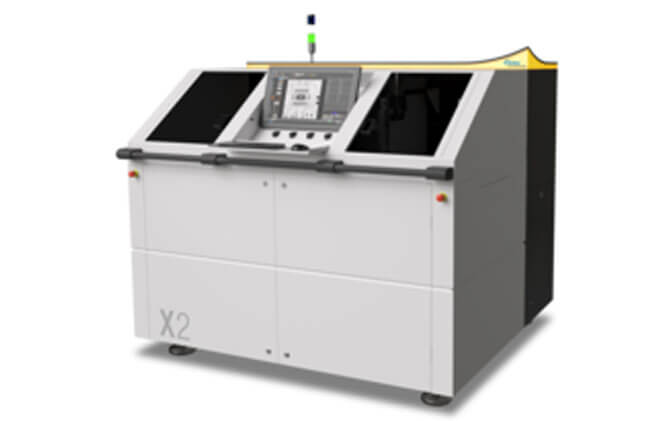

SMT setup for component and solder-joint inspection on PCB hybrid or chip level assembly processes X2 Transmission (2D) + SFT™

X2.5 Transmission (2D) + SFT™ + Off-Axis (2.5D)

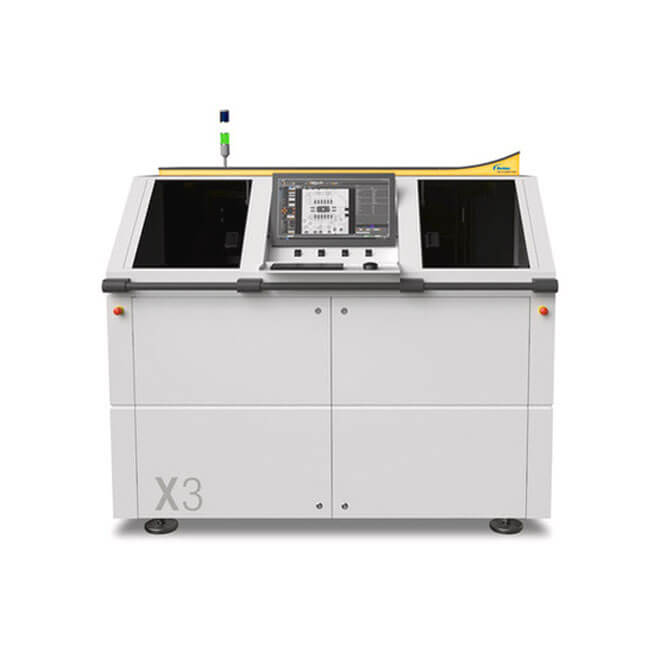

X3 Transmission (2D) + SFT™ + Off-Axis (2.5D) + 3D SART

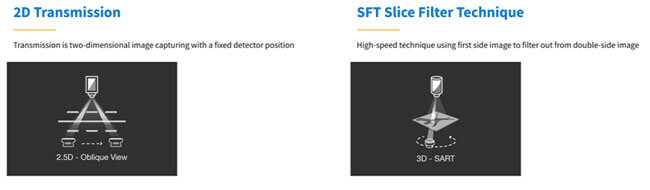

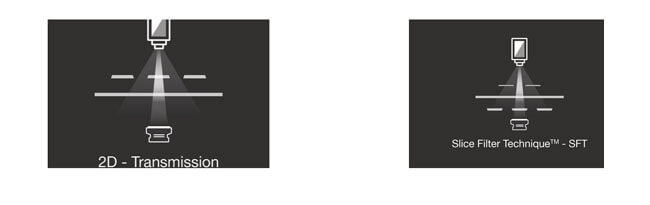

Inspection Technologies

The modular AXI system concept provides the unique capability to use several inspection technologies in one system. Depending on the specific application request the optimum inspection technique can be selected and/or combined.

2.5D-Oblique View

AXI on programmable angle-shots up to 40 dgr (used for high performance BGA and PTH inspection)

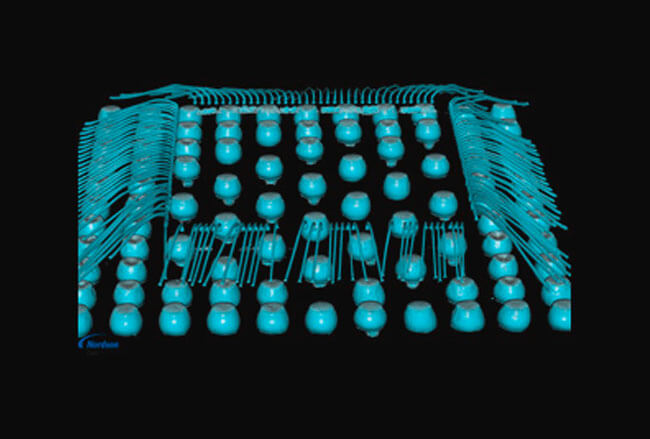

3D-SART

3D-Tomsynthesis to generate multiple horizontal slices used for high-dense double-sided and multi-chip-modules (MCM,LGA,…)

Specifications at a Glance

System
Footprint	1630 mm (H) x 1800 mm (W) x 1575 mm (D)
System Weight	2.800 kg
Power Consumption	max. 6kW
Line Voltage	400 VAC, 50/60 Hz 3 phase, 16 A / 208 VAC, 50/60 Hz 3 phase, 25 A
Operation Temperature	15° - 28°C optimal 20° - 25° C
Inspection Features
Max. sample size	460 mm x 360 mm
Max. inspection area	460 mm x 360 mm
Min. sample size	80 mm x 80 mm
Sample thickness	0, 8-10 mm
Max. sample weight	3 kg
Angle shot capability	up to 40 deg
Resolution	3-4 µm/pix
Options
Barcodereader
Low-dose radiation filter
Auto BCR scanning station (x-y gantry)
Semi Compliance
