Nordson AXI X1 Series Inspection Machine

Footprint：1330 mm (H) x 850 mm (W) x 880 mm (D)
Adjustable conveyer height (SMEMA)：890 - 980 mm
Max. carrier size：94 mm x 54 mm
System Weight：731 kg

BASIC INFO

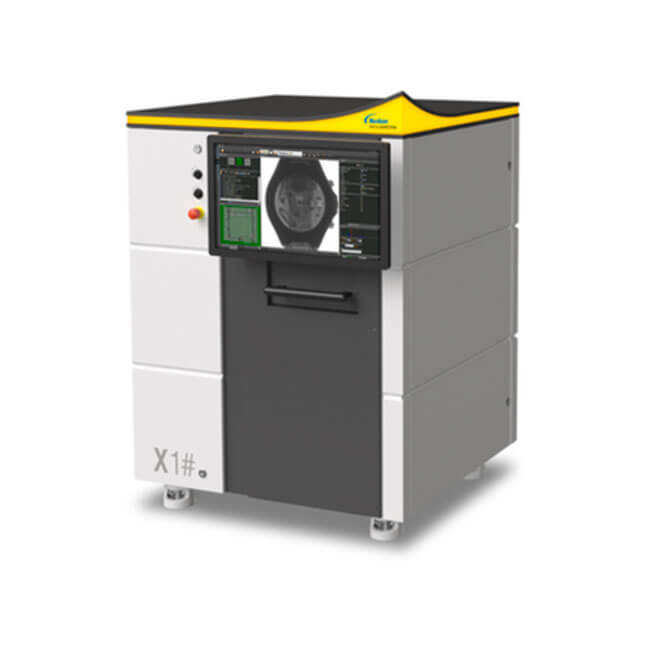

Nordson AXI X1 Series Inspection Machine

Overview

The X1# is a high-resolution, low-footprint and portable AXI system. It is a dedicated platform for FATP and advanced failure analysis applications in connection with smart devices.

High flexibility, island type AXI system

X-ray System Features

This system features a manual drawer for part loading. In order to minimize the motion range of the drawer to reduce the necessary space for the system, it showcases a parallel-slide motion system, bringing the carrier to the front of the drawer when it is pulled out.

Offline AXI system

Microfocus X-ray tube (sealed tube / maintenance free)

Digital CMOS flatpanel detector

Automatic grey-level and geometrical calibration

Barcode scanner for serial number and product type

selection

Full product traceability via various Industry 4.0 MES-Interfaces

IPC-CFX ready

Available Setups & Configurations

According to the dedicated field of application,
this system is available with the following setup:

Sealed, microfocus tube

14bit CMOS flat-panel detector

The X1# machine features the following configuration:

2D + SFT

Applications

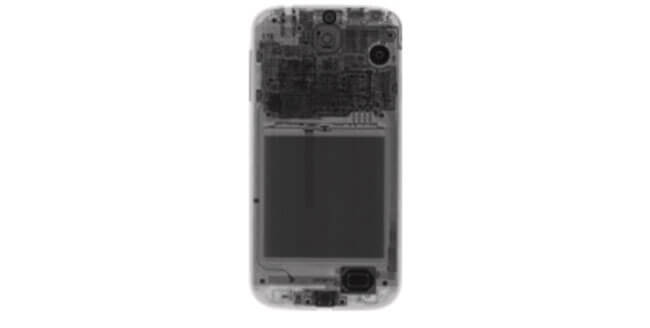

Final Assembly Test for Consumer

Best in class final assembly inspection for complete electronic products such as smart phones, notebooks, wearables etc.
Inspection coverage (extract):

Integrity: extra and missing components/material (e.g. screws)

Missaligned components and modules (e.g. cables, connectors, screws)

Connector alignment check

Comprehensive screw test (e.g. loosen, missing, tilted screws, tightness)

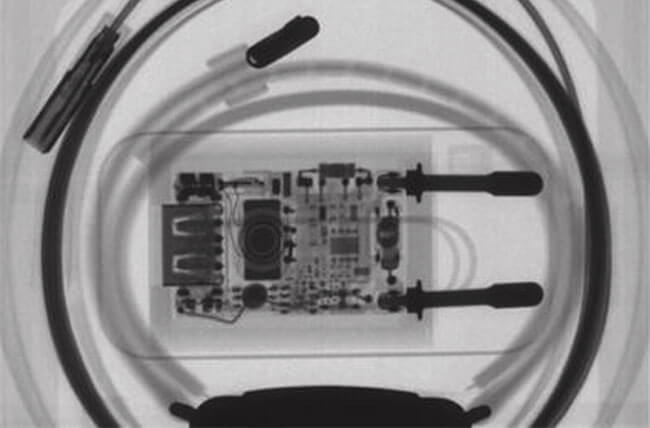

Inspection via high speed X-ray line scan technique and/or multiple image capturing using latest flatpanel-detectors.

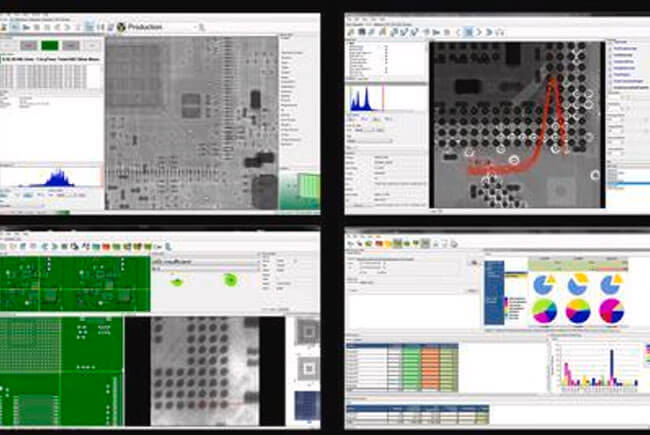

Inspection & Process Software

PC- Station with multi - core processor setup

Windows 10 platform

MIPS 5 Inspection Platform

Advanced algorithm library

CAD import for automatic inspection list generation

Automatic Tree Classification (ATC) for Auto-Rule-Generation

Offline programming for AXI program generation & simulation, tuning and defect reference catalogue

Verification & Process control

MIPS Verify link with closed loop repair

MIPS Process with real time SPC

Specifications at a Glance

System
Footprint	1330 mm (H) x 850 mm (W) x 880 mm (D)
System Weight	731 kg
Power Consumption	Max. 6kW
Line Voltage	220 VAC, 50/60 Hz 3 phase, 16A
Air Supply	6 Bar
Operation Temperature	15° - 32° C optimal 20° - 25° C
Adjustable conveyer height (SMEMA)	890 - 980 mm

Inspection features
Max. carrier size	94 mm x 54 mm
Max. inspection area	50 mm x 50 mm
Resolution	down to 10μm /pix

Options
Barcodereader
