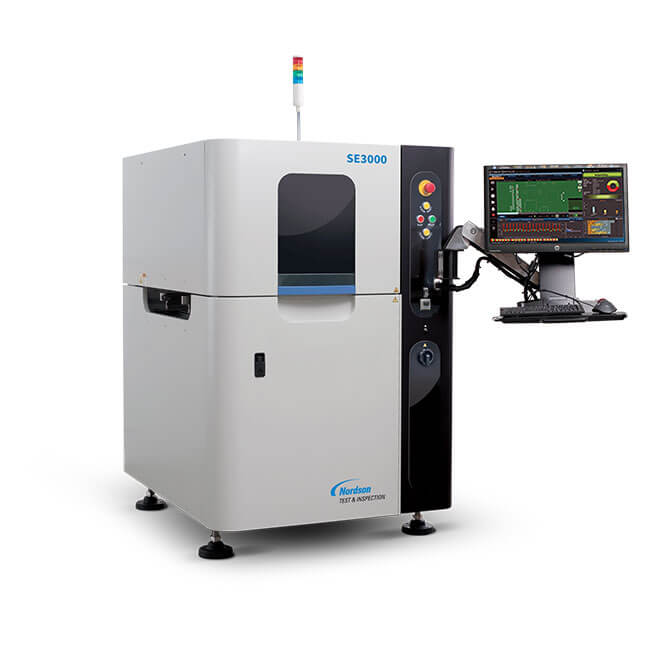

Nordson SE3000™/ SE3000-X™ 3D SPI Machine
Maximize yields with the World’s First SPI system incorporating the MRS® Sensor technology. When only the very best will do.
Overview:
Metrology Grade Accuracy
Attain highly accurate data with the industry-leading Multi-Reflection Suppression® (MRS®) sensor technology that meticulously identifies and rejects reflections caused by shiny components and reflective solder joints. Effective suppression of multiple reflections is critical for highly accurate measurement, making MRS an ideal technology for a wide range of applications including those with very high quality requirements.
High Speed Inspection + High Resolution Inspection
Speed inspection with the MRS® sensor that simultaneously captures and transmits multiple images in parallel, while highly sophisticated fusing algorithms merge the images together, delivering microscopic image quality at production speed. The new Dual-Mode MRS sensor for the SE3000™ SPI system provides maximum flexibility for dedicated solder paste inspection applications, with one mode for high speed inspection and another mode for high resolution inspection.
Fast, Smart, Easy-to-use software
Reduce training efforts and minimize operator interaction saving time and cost with the powerful yet simple software with intuitive multi-touch interface and 3D visualization tools.
Reduce rework costs, increase throughput, improve quality with feedback, and feed forward capable SPI Systems with leading Solder Paste printer and SMT Mounter vendors.
Improve yields and reduce downtime with the CyberPrint Optimizer™ predictive process improvement capability that automatically optimizes the print process by proactively analyzing current trend data.
Improve yields with full-fledged machine-level to factory-level SPC capability.
Specifications at a Glance
| MRS Sensor: | Ultra High-Resolution MRS Sensor: | |
| Inspection Speed | Peak: 35cm²/sec (2D + 3D) | Peak: 15cm²/sec (2D + 3D) |
| Average: 30 cm²/sec (2D+3D) | Average: 12 cm²/sec (2D+3D) | |
| Resolution | MRS Sensor: | Ultra High-Resolution MRS Sensor: |
| 18µm | 9µm | |
| Board Size | SE3000: Min. 50 x 50 mm, Max. 510 x 510 mm | |
| SE3000-X: Min. 50 x 120 mm, Max. 710 x 610 mm | ||
| SE3000-XL: Min. 50 x 120 mm, Max. 1200 x 610 mm with 2 index inspection capability | ||
| Clearance | Top (above belt): 30mm, Bottom: 35mm | |
| Component Height Clearance | Top: 50 mm (1.96 in.) ; Bottom: 30mm (1.18 in.) | |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
