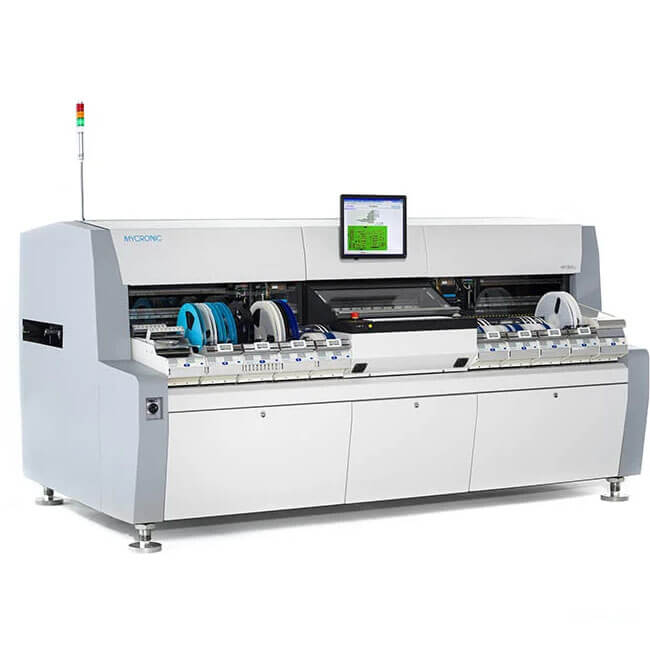

Mycronic MY300EX Pick and place machine

Rated speed ：11 000 CPH
p accuracy：50 µm, 2.6°
range：0.4–6.0 mm (0.016–0.24″)
weight：4 kg (8.8 lbs)

BASIC INFO

Mycronic MY300EX Pick and place machine

The industry’s most flexible pick-and-place solution just got faster.

hardware and software upgrades, now you can expand your business

to higher volumes while reducing changeover costs to a bare minimum.

The result is a versatile, balanced solution to the most demanding

production challenges that boosts your productivity – and your

bottom line. The shortest path to a smarter future starts here.

With the compact MY300HX and MY300EX machines, you can build

lines with the same high utilization Mycronic is known for and achieve

speeds up to 100,000 components per hour. Thanks to comprehensive

hardware and software upgrades, now you can expand your business

to higher volumes while reducing changeover costs to a bare minimum.

The result is a versatile, balanced solution to the most demanding

production challenges that boosts your productivity – and your

bottom line. The shortest path to a smarter future starts here.

Key benefits:

Up to 160 feeder positions

Top speed of 11,000 CPH

High fine pitch placement accuracy in X, Y, Theta

Chip placement from 03015 package size

Placement of any components, odd-shape, SMT connectors, THT components with 0.3 x 0.15 mm dimensions

Electrical verification of resistors, capacitors, diodes and transistors (optional)

Agilis™ - The most efficient feeding system

Mycronic’s modular Agilis™ component feeding system is designed for accuracy, ease of use and convenience. It gains unrivalled flexibility from a combination of intelligent feeders and magazines for tapes and sticks.

Our unique Agilis™ feeders with no moving parts are easier and quicker to load than any other on the market. And by keeping preloaded Agilis feeders on hand, you can perform set-ups and changeovers even faster.
