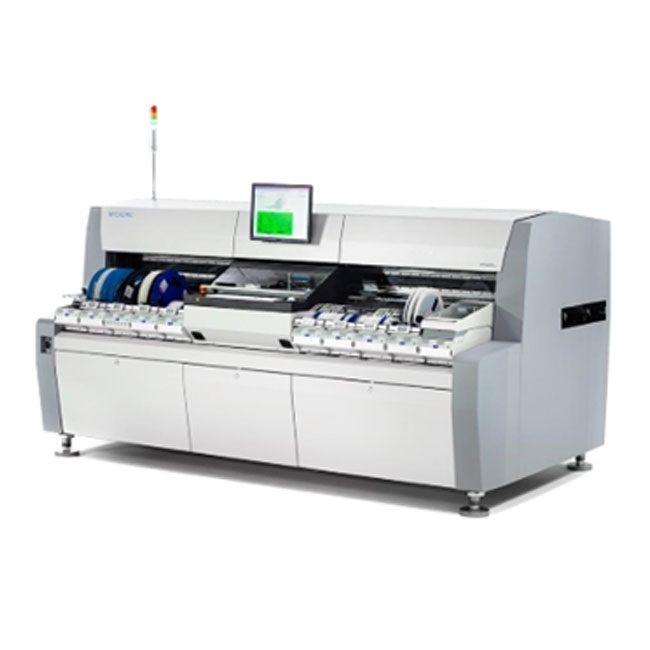

Mycronic MY300HX Pick and place machine
The MY300HX from Mycronic is a Pick-and-Place Machine featuring up to 160 feeder positions with a top speed of 45,000 components per hour. This machine is suitable for PCB sizes ranging from 70&thinspx&thinsp50?mm to 460&thinspx&thinsp510?mm and board thickness from 0.4 to 6.0?mm. It conforms to SMEMA standard for board transfer height, with board height adjustable from 880 to 975?mm. The machine features Agilis intelligent feeder technology for automatic feeder and component recognition. It comes with the LINESCAN vision system having 2K resolution and programmable light settings fiducial camera. This machine also has an open software interface for factory integration. The MY300HX requires three-phase AC 6.6?kVA (3&thinspx&thinsp2.2?kVA) power supply and has an average power consumption of 1.5 kW.
Key benefits:
Up to 160 feeder positions
Top speed of 45,000 CPH
Chip placement from 01005 package size
Placement of SO28, SOT223, SOJ20, PLCC32, MELF, SOD, TSOP with 0.4 x 0.2 mm minimum dimensions
Electrical verification of resistors, capacitors, diodes and transistors (optional)
Agilis™ - The most efficient feeding system
Mycronic’s modular Agilis™ component feeding system is designed for accuracy, ease of use and convenience. It gains unrivalled flexibility from a combination of intelligent feeders and magazines for tapes and sticks.
Our unique Agilis™ feeders with no moving parts are easier and quicker to load than any other on the market. And by keeping preloaded Agilis feeders on hand, you can perform set-ups and changeovers even faster.
Since all Mycronic magazines can be replenished while the machine is running, you never have to stop production if you run out of components.
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
