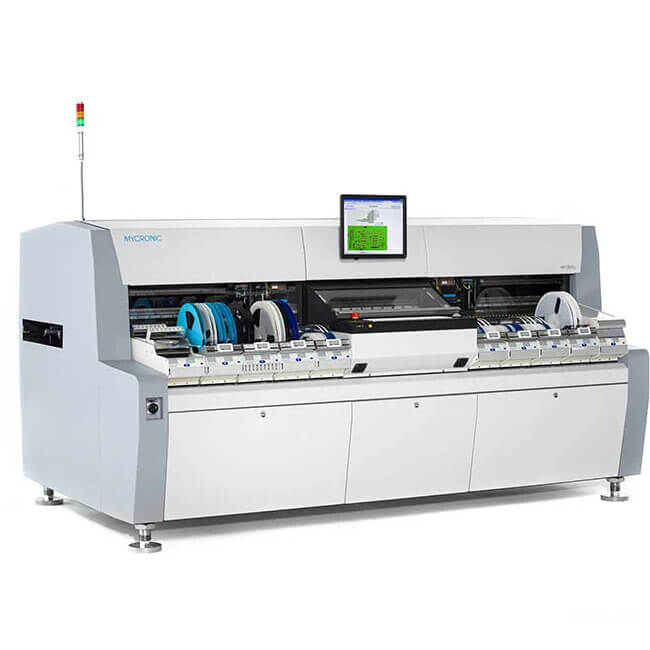

Mycronic MY300DX Pick and place machine

speed:: 40,000 CPH
p accuracy:50 µm, 2.6° (6)
range:0.4–6.0 mm (0.016–0.24″)
weight:4 kg (8.8 lbs)

BASIC INFO

Mycronic MY300DX Pick and place machine

MY300DX-13/17 All-in-one high-speed assembly. Featuring up to 224 feeder positions with a maximum speed of 40,000 components per hour.

Less space used

With the MY300 it is possible to handle up to 224 feeder positions in a 40% smaller machine footprint than previous models.

Get more jobs in less space. Switch effortlessly from full volume to batch size one. And handle a wider range of components with uncompromising production quality, total stock accuracy and complete traceability down to the individual PCB serial number. MY300 offers new levels of accuracy and flexibility in a faster, smaller and smarter format. MY300 makes it possible to handle up to 224 feed positions in a 40% smaller machine footprint than previous models. With 448 line positions per line, the MY300DX-17 gives you 40% more line capacity per meter of line length than previous generations.

Or, if needed, take advantage of the MY300 ‘s smaller footprint by incorporating additional process steps into your line. With 18 nozzles per machine, you can mount a wide variety of component types, resulting in excellent throughput.

Key Benefits

Material and Information are bottlenecks

Intoday’s dynamic production environment, machine cycle time is no longer the limiting factor. The number of plates you produce per day is determined primarily by your ability to handle material and information efficiently. Let us help you master this complexity with the most versatile solution to choose and place on the market.

More plates with less effort

Apowerful inventory management system is the backbone of our manufacturing solution. We combine innovative feeding technology and automated storage with complete material tracking and paperless operator guidance. That way, we can ensure that the right material is loaded into the machines with minimal human effort...

Support along the way

Ourthinking doesn’t stop at the physical operation. At Mycronic, we also apply thinking to the flow of information through the factory. Whether you’re a planner, engineer, stock manager or machine operator, our powerful, easy-to-use software package ensures you have access to accurate, up-to-date information.

New operator-friendly design

Now more user-friendly and accessible, the new MY300 platform is designed to make operation and maintenance easier than ever. The redesigned operator console has improved visibility and ergonomics, ensuring hassle-free access for any type of maintenance work. To further reduce downtime, improved waste conveyor handling makes it easier to access and unload the waste conveyor from the rear of the machine

Automatic plate train

Fully automated plate train functionality is now standard on the MY300DX and MY300SX models, increasing throughput with simultaneous loading and unloading of multiple plates. The MY300 series also supports manual plate handling and in-line handling of irregular shapes while maintaining full integration with your production process.

Handles any future component

Thanks to a new x-wagon with upgraded high-speed assemblies and vision systems up to 4k resolution, the MY300DX reaches maximum speeds of up to 40,000 components per hour and handles almost any component you may need for years to come. The model’s 18 nozzles, along with 448 inline feed positions, ensure excellent performance for any mix of component types. Combine two MY300DX lines into a single workcell and you’ll have a full 160,000 CPH placement capacity under your control. You’ll have continuous, high-speed production, meaning a proactive, fully automated material flow, run by fewer operators. For those who demand versatility, two MY300DX machines arranged on a single line form an agile, modular production unit capable of meeting any future needs. Thanks to a more space-efficient design, it now boasts 40% more feeder capacity within the same line length as previous models.

Specifications

MY300	HX	DX	SX	LX	EX
Rated speed (cph)	45 000	40 000	24 000	16 000	11 000
Max feeder count (8mm tape)	160	224	192	192	160
Chip Accuracy @ Cpk=1.33 (µm)	50	50	50	75	50
Max board size (mm)	640 x 510	640 x 510	640 x 510	640 x 510	640 x 510
