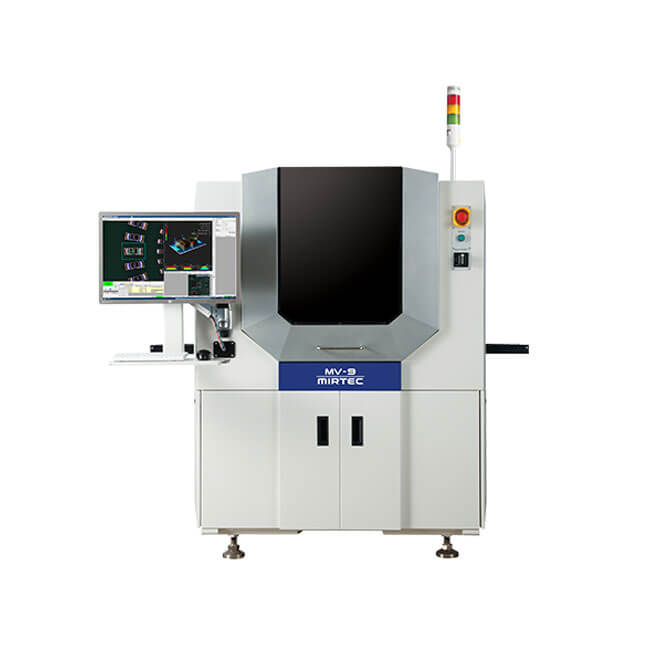

MIRTEC MV-9 Series 3D AOI Machine
MV-9 3D AOI Series Specifications
Standard Features:
Intel® Multi-Core PC, 32” Flat Screen LCD Monitor, Windows 10TM OS, HDD, Mouse & Keyboard, Network LAN Card.
OMNI-VISION® - Digital Tri-Frequency Moiré Technology - 12 Projection Blue DLP - 25mm 3D Inspection Capability
Three Stage High-Speed Conveyor System with Programmable Width Control and Automatic PCB Support.
Advanced Eight (8) Phase Color LED Lighting System
Pre and Post Reflow Inspection Capability
Automatic Teach Tool (ATT) Software - Automatic Programming Using Centroid Data
Comprehensive Package Type Library - Provides Simple "Drag and Drop" Component Programming.
Local System Software: Repair Plus Software, Statistical Process Control (SPC) Software.
Options:
15 Mega Pixel or 25 Mega Pixel CoaXPress Top-Down Color Camera System (See Specifications)
SIDE-VIEWER® Camera System - Quantity (4) 10MP or 18MP CXP Side-Angle Digital Color Cameras. (See Specifications)
Programmable Z-Axis Multi-Focus System - Provides Optimal Focus Level for Taller Devices.
ePM-AOI CAD Import Software. ODB++ Import Module Sold Separately (Requires ePM AOI).
AOI-SPI Fusion Technology - Provides Both AOI and SPI Capability in a Single Platform
2D Bar Code Reader Options: Gun Type, Camera Type and External Mount
MV-9DL Shuttle Conveyor Options: Input Shuttle Conveyor, Output Shuttle Conveyor
Remote PC - Software Purchased Separately.
Remote Software: Repair System Software, Statistical Process Control (SPC) Software, Off-Line Teaching Software (OLTT).
Total Remote Management Software (TRMS) - Requires Server Software for Remote PC and Client Software on All Machines.
INTELLI-TRACK® Process Control Software - Requires Server Software for Remote PC and Client Software on All Machines.
SVN Multi-System Version Control Software - Requires Separate PC Server.
Premium Full 3D AOI for precise 3D inspectionWorld best super precision full 3D AOI
- Non-blind spot digital 12 projection moiré 3D inspection technology
- Inspection for diffused reflection component, OCR, micro crack precisely by 8 phases coaxial color lighting
- Smallest component inspection by 25Megapixel 7.7㎛ CXP main camera
- High resolution 18 mega pixel angled camera system
Precise Inspection: Best yield with combination of full 3D inspeciton, full 2D insepction and deep learning algorithm
Side-Viewer® : simultaneous 5-dimension inspection by using 18 mega pixel angled cameras
Intellisys® : Total process management system for improving productivity and achieving smart factory
AI Auto Programming : simple and easy programming by using IPC international standard library
Powerful 3D AOI which can be applied to SMT production line and second process of semiconductor manufacturing
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
