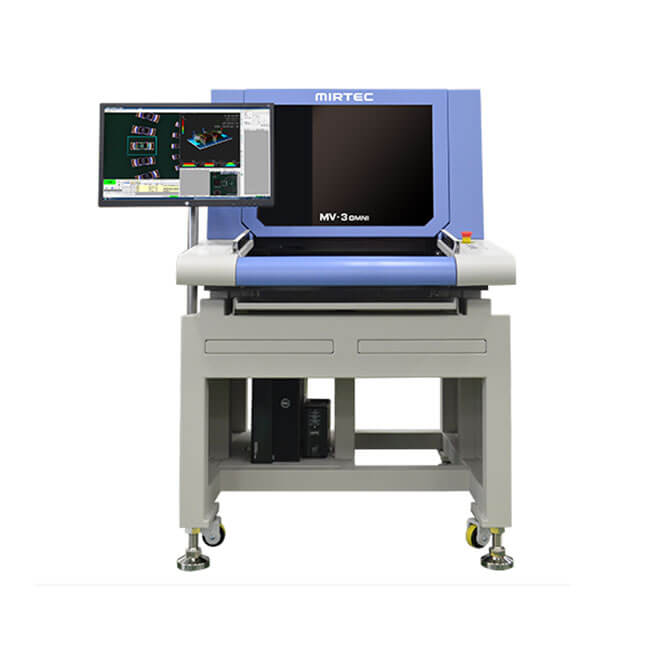

MIRTEC MV-3 OMNI 3D AOI Machine

The Mirtec MV-3 OMNI is a cutting-edge desktop Automated Optical Inspection (AOI) machine designed for high-precision inspection of electronic assemblies. Equipped with advanced 3D inspection capabilities, it ensures comprehensive defect detection and process control in SMT production lines. Compact yet powerful, the MV-3 OMNI offers superior performance, making it an ideal choice for manufacturers aiming for top-tier quality assurance.

MV-3 OMNI Desktop 3D AOI Series Specifications

Standard Features:

Intel® Multi-Core PC, 32” Flat Screen LCD Monitor, Windows 10TM OS, HDD, Mouse & Keyboard, Network LAN Card.

 OMNI-VISION® - Digital Tri-Frequency Moiré Technology - 12 Projection Blue DLP - 25mm 3D Inspection Capability.

Semi-Automatic PCB Support System

Advanced Eight (8) Phase Color LED Lighting System

Pre and Post Reflow Inspection Capability

Automatic Teach Tool (ATT) Software - Automatic Programming Using Centroid Data.

Comprehensive Package Type Library - Provides Simple "Drag and Drop" Component Programming.

Local System Software: Repair Plus Software, Statistical Process Control (SPC) Software.

Options:

15 Mega Pixel or 25 Mega Pixel CoaXPress Top-Down Color Camera System (See Specifications).

SIDE-VIEWER® Camera System - Quantity (4) 10MP or 18MP CXP Side-Angle Digital Color Cameras. (See Specifications).

Programmable Z-Axis Multi-Focus System - Provides Optimal Focus Level for Taller Devices.

ePM-AOI CAD Import Software. ODB++ Import Module Sold Separately (Requires ePM AOI).

AOI-SPI Fusion Technology - Provides Both AOI and SPI Capability in a Single Platform.

2D Bar Code Reader Options: Gun Type and Camera Type.

Remote PC - Software Purchased Separately.

Remote Software: Repair System Software, Statistical Process Control (SPC) Software, Off-Line Teaching Software (OLTT).

Total Remote Management Software (TRMS) - Requires Server Software for Remote PC and Client Software on All Machines.

INTELLI-TRACK® Process Control Software - Requires Server Software for Remote PC and Client Software on All Machines.

SVN Multi-System Version Control Software - Requires Separate PC Server.

MV-3 OMNIBenchtop 3D AOI that great at small quantity batch production

Equivalent performance with in-line 3D AOI

- Non-blind spot digital 12 projection moiré 3D inspection technology
- Inspection for diffuse reflection component, OCR, micro crack precisely by 8 phases coaxial color lighting
- Smallest component inspection by ultra-high resolution camera and lens
- 18 mega pixel angled camera which has similar resolution with main camera

Precise Inspection: Best yield with combination of full 3D inspeciton, full 2D insepction and deep learning algorithm

Side-Viewer® : simultaneous 5-dimension inspection by using 18 mega pixel angled cameras

Intellisys® : Total process management system for improving productivity and achieving smart factory

AI Auto Programming : simple and easy programming by using IPC international standard library

Good design for space efficiency.
