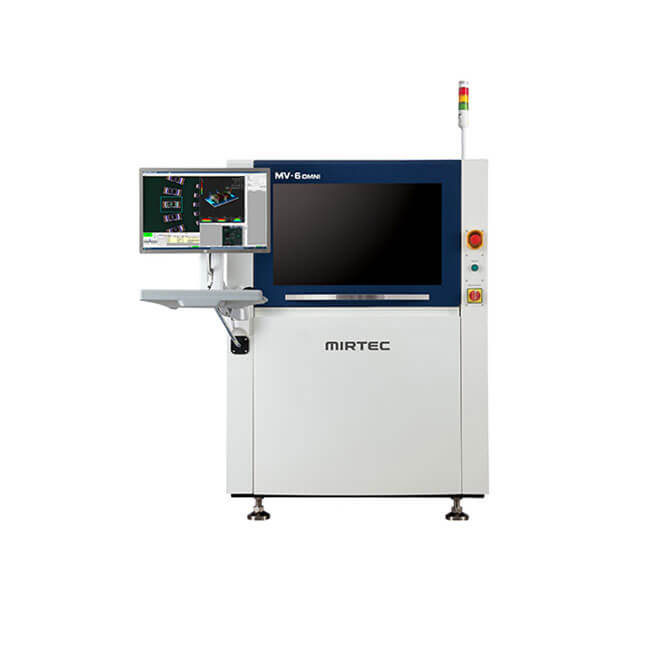

MIRTEC MV-6 Series OMNI 3D AOI Machine
The MV-6 OMNI Series by MIRTECH is an Automated Optical Inspection Machine that is suitable for inspecting PCBs with an optimal size of 480 x 460 mm. It can inspect components with sizes ranging from 0402 to 01005. This AOI uses a dual camera system of 15 and 25 megapixels and the resolution ranges from 10 µm to 15 µm. It has a wide field of view of 58.56 x 58.56 mm which is achieved by an 8-phase Colour Lighting System to deliver clear and detailed images for the inspection of PCBs. This machine has an inspection speed of around 0.77 sec/FOV, and easy movement of the camera is maintained by providing Top and Bottom clearance of around 45 mm and 50.8 mm respectively.
The MV-6 OMNI series can detect PCB defects like missing parts, wrong parts, misalignment, skew, polarity, and tombstones. It features non-blind spot digital 12 projection moiré 3D inspection technology for meticulous examination of reflective objects, OCR, and crack defects through its 8-phase coaxial colour light setup. The side-viewer feature allows simultaneous 5-dimensional inspection using 18-megapixel angled cameras, while Intellisys serves as a comprehensive process management system for optimizing productivity and realizing smart factory goals. Additionally, its AI Auto Programming simplifies the programming process using IPC international standard libraries, all offered at a compelling and competitive price point.
MV-6 OMNI 3D AOI Series Specifications
Standard Features:
Intel® Multi-Core PC, 32” Flat Screen LCD Monitor, Windows 10TM OS, HDD, Mouse & Keyboard, Network LAN Card.
OMNI-VISION® - Digital Tri-Frequency Moiré Technology - 12 Projection Blue DLP - 25mm 3D Inspection Capability.
Single Stage High-Speed Conveyor System with Programmable Width Control and Automatic PCB Support.
Advanced Eight (8) Phase Color LED Lighting System
Pre and Post Reflow Inspection Capability.
Automatic Teach Tool (ATT) Software - Automatic Programming Using Centroid Data.
Comprehensive Package Type Library - Provides Simple "Drag and Drop" Component Programming
Local System Software: Repair Plus Software, Statistical Process Control (SPC) Software.
Options:
15 Mega Pixel or 25 Mega Pixel CoaXPress Top-Down Color Camera System (See Specifications).
SIDE-VIEWER® Camera System - Quantity (4) 10MP or 18MP CXP Side-Angle Digital Color Cameras. (See Specifications).
Programmable Z-Axis Multi-Focus System - Provides Optimal Focus Level for Taller Devices.
ePM-AOI CAD Import Software. ODB++ Import Module Sold Separately (Requires ePM AOI).
AOI-SPI Fusion Technology - Provides Both AOI and SPI Capability in a Single Platform.
MV-6 OMNI: Three (3) Stage High-Speed Conveyor / MV-6 OMNI XL / HV: Conveyor Rail Extension (See Specifications).
2D Bar Code Reader Options: Gun Type, Camera Type and External Mount. MV-6DL OMNI Shuttle Conveyor Options: Input Shuttle Conveyor, Output Shuttl
Remote PC - Software Purchased Separately.
Remote Software: Repair System Software, Statistical Process Control (SPC) Software, Off-Line Teaching Software (OLTT)
Total Remote Management Software (TRMS) - Requires Server Software for Remote PC and Client Software on All Machines.
INTELLI-TRACK® Process Control Software - Requires Server Software for Remote PC and Client Software on All Machines.
SVN Multi-System Version Control Software - Requires Separate PC Server.
The optimal 3D AOI to improve productivity
The world's best performance 3D AOI
- Non-blind spot digital 12 projection moiré 3D inspection technology
- Inspection for reflective objects, OCR, and crack defect precisely by 8 phase coaxial color light
- Smallest component inspection by ultra-high resolution camera and lens
- 18 mega pixel angled camera which has similar resolution with main camera
45% Increase in inspection speed when Turbo Speed is applied
Precise Inspection: Best yield with combination of full 3D inspeciton, full 2D insepction and deep learning algorithm
Side-Viewer® : simultaneous 5-dimension inspection by using 18 mega pixel angled cameras
Intellisys® : Total process management system for improving productivity and achieving smart factory
AI Auto Programming : simple and easy programming by using IPC international standard library
The best performance at reasonable price
General Parameters
| PCB Size | 480 x 460 mm |
| Camera | 15 MP, 25 MP |
| Resolution | 10 µm, 15 µm |
| Field of View | 58.56 x 58.56 mm |
| Inspection Speed | 0.77 sec / FOV |
| Defect Analysis | Component Missing, Wrong Part, Misalignment, Skew, Polarity, Tombstone |
| Component size | 0402, 01005 |
| Lighting | Eight Phase Color Lighting System |
| Power Supply | Single Phase 200-240V 50/60Hz 1.1 KW |
| Top Clearance | 45 mm |
| Bottom Clearance | 50.8 mm |
| Net Weight | 950 kg |
| Machine Dimension | 1080 x 1470 x 1500 mm |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
