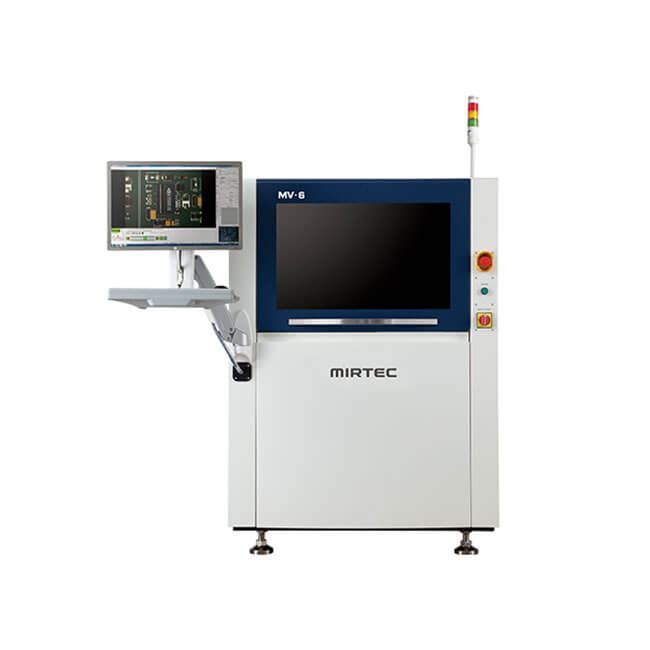

MIRTEC MV-6 Series 2D AOI Machine

18 Megapixel Top Camera
Intelli-Scan® Laser Scanner
18 Megapixel Side-Viewer®
8 Phase Coaxial Color Light

BASIC INFO

MIRTEC MV-6 Series 2D AOI Machine

With over two decades of expertise, Korea’s Mirtec has become a top provider of optical inspection solutions across industries, from automotive to consumer electronics. The Mirtec MV-6 OMNI series delivers exceptional 2D and full 3D inline optical inspection with unmatched efficiency, speed, and accuracy—at an affordable price point.

The MV-6 OMNI utilizes patented Blue DLP Moiré technology for precise, noise-free 3D measurements, even on reflective surfaces. Its 15 MP camera and 10 or 15 μm telecentric lens ensure lightning-fast, high-resolution inspection. Combining 3D and full 2D measurement capabilities, it detects defects that standalone 3D systems might miss, such as polarity marks, cracks, and solder imperfections. With its 8-phase illumination system, including coaxial lighting, even the finest details are flawlessly captured.

The system’s side camera adds another layer of precision, enabling inspection at angles perfect for detecting issues like solder joints on J-leg ICs, QFNs, and polarity marks.

The world's best 2D AOI system that exist

The world's best performance 2D AOI

- Small component inspection up to 0201(㎜) size with high resolution 18 mega pixel CXP camera & 7.3㎛ lens
- Inspection for reflective objects, OCR, and crack precisely by 8 phases coaxial color light
- Super high resolution 18 mega pixel angled camera
- Lifted IC lead and BGA package inspection by laser unit

Side-Viewer® : simultaneous 5-dimension inspection by using 18 mega pixel angled camera

Intellisys® : Total process management system for improving productivity and achieving smart factory

Simple and easy auto programming using IPC international standard library

Reliable 2D AOI system that verified by 15,000 users
