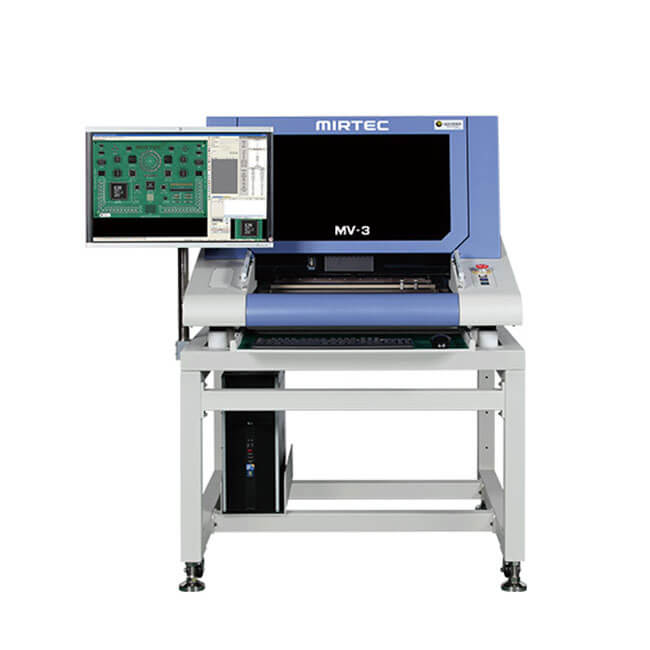

MIRTEC MV-3 Series 2D AOI Machine
MV-3 Series Features and Specifications
Standard Features:
Intel ® Core™2 Duo PC, 24” Flat Screen LCD Monitor, Windows 7TM OS, HDD, Mouse & Keyboard, Network LAN Card
Adjustable PCB Work Fixture, Safety Light Curtain.
Three (3) Layer Programmable LED Light Source (Horizontal, Vertical, Coaxial).
Pre and Post Reflow Inspection Capability.
Automatic Teaching Software w/ Comprehensive Package Type Library for Simple "Drag and Drop" Programming
Local Software: Repair Plus Software, Statistical Process Control (SPC) Software.
Options:
Five or Ten Mega Pixel Top-Down View Digital Color Camera System (See Specifications).
SIDE-VIEWER® Camera System - Quantity (4) Five or Ten Mega Pixel Side View Digital Color Cameras (See Specifications
INTELLI-BEAM® Laser System - Z-Height Measurement Capability for BGA and CSP Devices.
NG Marking System – Clearly Marks Position of Defects with a Water Soluble Ink Dot.
2D Bar Code Reader - Gun Type - 2D Bar Code Reading Capability Using Handheld Gun Type Reader
2D Bar Code Reader - Camera Type - 2D Bar Code Reading Capability Using the Top Down Camera System
Remote Software: Off Line Programming, Remote Repair Plus, Remote SPC, Remote Management (PC Required)
Inspection System Moveable Workstation.
Versatile benchtop 2D AOI
Great inspection performance
- Inspection for diffuse reflection component, OCR, micro crack precisely by 8 phases coaxial color lighting
- Angled camera system for solder inspection under J-lead, no-lead and coil component
- Lifted BGA package and CSP package inspection by laser unit
Side-Viewer® : simultaneous 5-dimension(Center, East, West, South, North) inspection by 18 mega pixel angled cameras
Intellisys® : Total process management system for improving productivity and achieving smart factory
Simple and easy auto programming using IPC international standard library
Benchtop 2D AOI system meets outstanding performance, economy and space utilization
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
