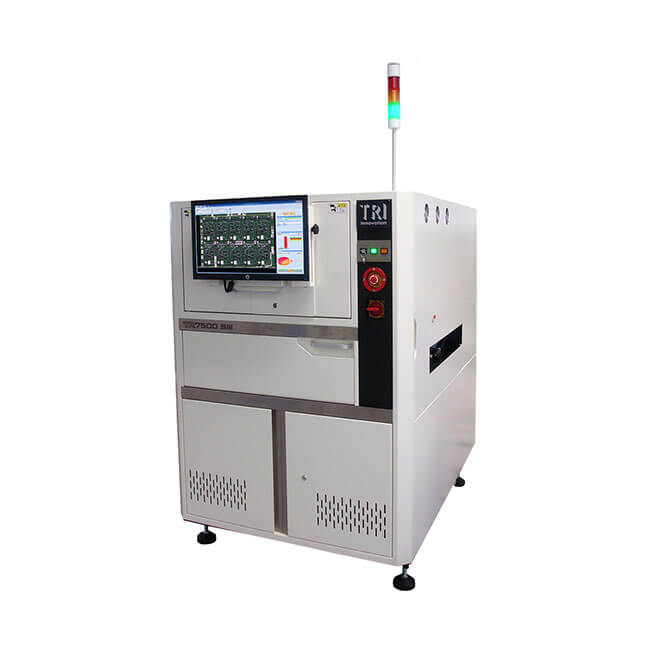

TRI TR7500 SIII AOI Machine
TRI's top of the line AOI solution offers ultra-high speed 5-camera PCB assembly inspection that can reliably detect even the most complex solder and assembly defects. The powerful combination of intelligent software and high performance hardware delivers a reliable and easy to use AOI solution focused on highly accurate inspection results with a minimum of false calls to help optimize your production yields.
Features
• High precision 5-camera multi-phase AOI
• Smart easy programming GUI with offline editing
• Intelligent auto conveyor for reduced load times
• Reliable inspection with high accuracy and minimum false calls
| Imaging Method | Dynamic Imaging |
| Top Camera | 4 MPix |
| Angle Camera | 1.3 Mpix or 6.5 Mpix (factory setting) |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase RGB+W LED |
| 3D Technology | Single/Dual 3D laser sensors |
| Max. 3D Range | 20 mm (with 3D Laser Sensor upgrade optional) |
| Inspection Performance | |
| Imaging Speed | 4 Mpix@ 10 µm 2D: 60 cm²/sec |
| 4 Mpix@ 15 µm 2D: 120 cm²/sec | |
| Motion Table & Control | |
| X-Axis Control | Ballscrew + AC-servo controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | N/A |
| XY Axis Resolution | 1 µm |
| Board Handling | |
| Max PCB Size | TR7500 SIII: 510 x 460 mm |
| TR7500L SIII: 660 x 610 mm | |
| TR7500 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane | |
| PCB Thickness | 0.6-5mm |
| Max PCB Weight | 3kg |
| Top Clearance | 25 mm [48 mm optional] |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor | Inline |
| Height: 880 – 920 mm | |
| * SMEMA Compatible | |
| Inspection Functions | |
| Component | Missing |
| Tombstoning | |
| Billboarding | |
| Polarity | |
| Rotation | |
| Shift | |
| Wrong Marking (OCV) | |
| Defective | |
| Upside Down | |
| Extra Component | |
| Foreign Material | |
| Lifted Component | |
| Solder | Excess Solder |
| Insufficient Solder | |
| Bridging | |
| Through-hole Pins | |
| Lifted Lead | |
| Golden Finger | |
| Scratch/Contamination | |
| Dimensions | |
| wxya | TR7500 SIII: 1100 x 1670 x 1550 mm |
| TR7500L SIII: 1300 | |
| x 1630 x 1655 mm TR7500 SIII DL: 1100 x 1770 x 1550 mm | |
| Note: not including signal tower, signal tower height 520 mm | |
| Weight | TR7500 SIII: 1030 kg |
| TR7500L SIII: 1255 kg | |
| TR7500 SIII DL: 1150 kg | |
