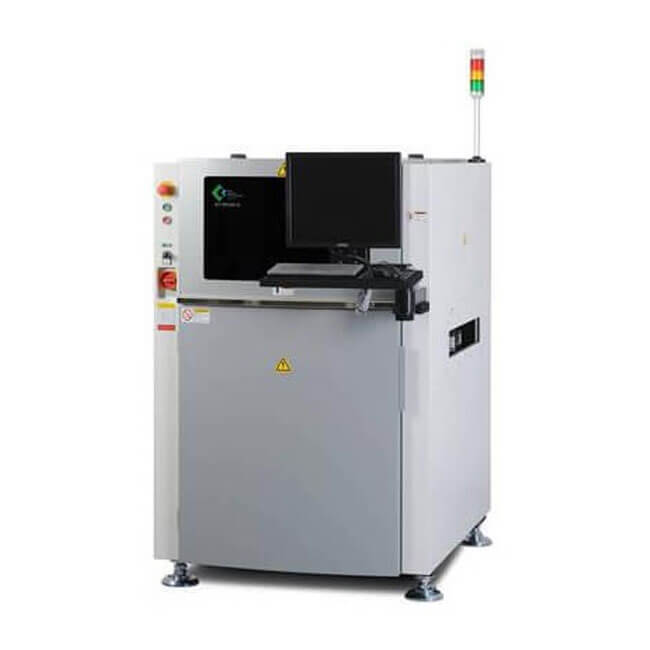

KOH YOUNG KY8030-2 SPI Machine
The World's Best-selling Full 3D Solder Paste Inspection
Best-in-class measurement accuracy and inspection reliability
Solves shadow problems by utilizing 2-way projection
Provides accurate inspection data with real-time PCB warp compensation
Provides user-friendly software interface
Full 3D data-based process optimization solution: Realization of industry 4.0 / smart factory
Realizes real-time process optimization through powerful SPC analytics
Provides a powerful printing process optimization tool
Good value model for a variety of production environment
Key Features:
Solution to shadow problem using patented dual projection Moiré technology
Industry best inspection speed with guaranteed measurement accuracy
Easy UI & SPC Plus included to help printing process optimization
Inspection Items: Volume, Area, Height, Offset, Bridging, Shape Deformity, Coplanarity
| Must-check Requirements of 3D SPI System | ||||
| Requirements | Solutions | |||
| Solution to Shadow Problem | 3D Shadow Free Moiré Technology &DualProjection | |||
| Real Time PCB Warp Compensation(2D+3D Solution) | Warp Compensation(Pad Referencing+Z-tracking) | |||
| Operator User-friendliness | Renewal GUI,Real Color 3D Image | |||
| Inspection Range | Up to 2mm(optional) | |||
| Foreign Material Inspection | 3D Foreign Material Inspection(optional) | |||
| Inspection Items | Metrology Capability | Volume,Area,Height,Offset,Bridging,Shape Deformity,Coplanarity | ||
| Types of Defects | Insufficient/Excessive/Missing Paste,Bridging,Shape Deformity, PasteOffset, Coplanarity | |||
| Inspection performance | Camera Resolution | 10μm | 15μm | 20μm |
| FOV Size | 20×20mm(0.79×0.79 inch) | 30×30mm(1.18×1.18 inch) | 40×40mm(1.57×1.57 inch) | |
| Full 3D InspectionSpeed | 13.7~43.5cm²/sec(Inspectionspeed varies by PCB and inspection condition.) | |||
| With High Speed Option | 16.2~50.8 cm²/sec(Inspection speed varies by PCB and inspection condition.) | |||
| Min.Distance between Paste Deposit | 100μm(3.94 mils) | 150μm(5.91 mils) | 200μm(7.87 mils) | |
| Camera | 4M Pixel Camera | |||
| Illumination | IR-RGB LED Dome Styled Illumination | |||
| Z Resolution | 0.37μm | |||
| HeightAccuracy(on KY Calibration Target) | 1μm | |||
| X,YAccuracy | 2.5 nano meter(PZT Accuracy) | |||
| 01005 Inspection Capacity Gage R&R(±50%tolerance) | < 10% at 6 | |||
| Max.Inspection Size | 10×10mm | 0.39×0.39inch | ||
| Max.Inspection Height | 400μm(2mm optional) | 15.75 mils (78.74 mils optional) | ||
| Min Distance between PADs | 100μm(150μm paste height) | 3.94 mils(5.91 mils paste height) | ||
| Various colored PCB Inspection | Possible | |||
| M | L | DL | XL | |
| Max.PCBSize |
330X330mm (13X13inch) |
510X510mm (20X20 inch) |
Dual:510X320mm (20X12.6inch) Single:510X580mm (20X22.8inch) |
850X690mm (33.4X27.1 inch) |
| Min.PCB Size |
50X50mm (1.97X1.97inch) |
70X70mm (2.7X2.7inch) |
||
| PCBThickness |
0.4~5mm (0.015-0.20 inch) |
0.5~8mm (0.02-0.31 inch) |
||
| Max.PCB Weight | Standard:2kg,Heavy Weight Option:5kg | 10Kg(22 bs) | ||
| Machine Weght | 550Kg(1212Ibs) | 600Kg(1322 bs) | 700Kg(1543Ibs) | 850Kg(1874Ibs) |
| Bottom Side Cearance | 50mm(1.97 inch) | |||
| Supplies | 200~240VAC,50/60Hz Single Phase,5Kgf/cm² | |||
| W | 820mm(32.2inch) | 1000mm(39.3inch) | 1350mm(53.1 inch) | |
| D | 1265mm(49.8inch) | 1265mm(49.8inch) | 1445mm(56.9inch) | 1445mm(56.9inch) |
| H | 1627mm(64 inch) | |||
| F | 985mm(38.7 inch) | 1165mm(45.8inch) | ||
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
